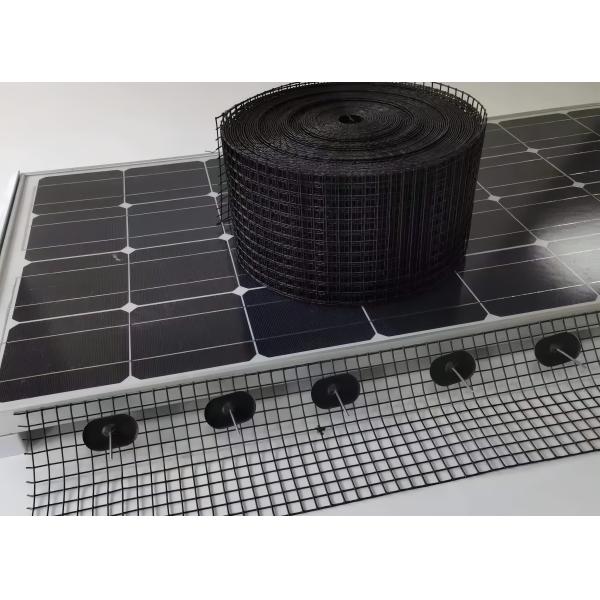

Black Poly stainless steel Weld wire Mesh
Quick details of Black Poly stainless steel Weld wire Mesh
- Wire Type: Stainless Steel304
- Gauge: 14AWG
- Mesh Opening: 1"x1" (25.4 MM X 25.4MM)
- Roll Size: 48"x100' (1.22M X30M Per roll)
- Surface treatment: Black poly color finished
Description of Black Poly stainless steel Weld wire Mesh
Our Black Poly Stainless steel Weld Mesh is strong and durable. By
its nature, stainless steel wire does not need additional surface
treatment, such as PVC, to protect it. However, we have done black
ploy treatment outside to strengthen the function of resisting
ultraviolet rays. The wire itself is very resistant to rust,
corrosion and harsh chemicals. If you need to install welding nets
or fences in areas exposed to corrosive environment for a long
time, stainless steel products will meet your needs.Very suitable:
long-term exposure to environmental factors and/or corrosive
substances, long-term need for fences.
Standard Specification of Stainless steel wire Weld Mesh
The raw material of stainless steel welded wire mesh is hydrogen
annealed stainless steel wire, and the normal grade is SS304,
SS304L, SS316, SS316L, SS430.Except for stainless steel wire,
carbon steel is also normal used material for welded wire mesh.
The width of welded wire mesh rolls are 1m, 1.2m ,1.5m, 2.0m, and
the length is 30m. The standard dimensions of mesh panels is
1.2m*2.4m, other dimensions can be produced according to clients
requirement.
The parameters of welded mesh including wire diameter, mesh size,
mesh dimensions. And the mesh size can be center distance or clear
distance.
| Common Specifications of Stainless Steel Welded Wire Mesh |
| Mesh Size(inch) | Wire Dia.(mm) | Width (m) | Mesh Size(inch) | Wire Dia.(mm) | Width (m) |
| 1/4"×1/4" | 0.4-1.2 | 0.3-1.5 | 3/4"×1.5" | 0.8-2.0 | 0.5-1.5 |
| 1/4"×1/2" | 0.4-1.2 | 0.3-1.5 | 1.5"×1.5" | 0.8-2.0 | 0.5-2.1 |
| 1/4"×1" | 0.4-1.2 | 0.3-1.5 | 1/2"×1/2" | 0.4-2.0 | 0.3-2.1 |
| 3/8"×3/8" | 0.4-1.2 | 0.5-1.5 | 1/2"×1" | 0.4-2.0 | 0.3-2.1 |
| 3/8"×3/4" | 0.4-1.2 | 0.5-1.5 | 1"×1" | 0.6-2.5 | 0.5-2.1 |
| 3/4"×3/4" | 0.8-2.0 | 0.5-1.5 | 2"×2" | 0.6-2.5 | 0.5-2.1 |
Application of Stainless steel wire Weld Mesh
Like virtually all wire mesh and wire cloth, stainless steel welded
wire mesh lends itself for use in architectural, agricultural,
commercial and industrial applications. Here are a handful of
popular uses for T 304 SS and T 316 SS welded wire mesh:
- Infill panel & railing systems, Industrial fan & machine guards, Security enclosures, Animal retention (cages)
- Small critter control, Decorative signage, Room dividers,Wall cladding,Ceiling panels
- Air vents & soffit screens, Basket fabrication, Food applications,Racking & storage
- Aviary & bird screen, Industrial separation
