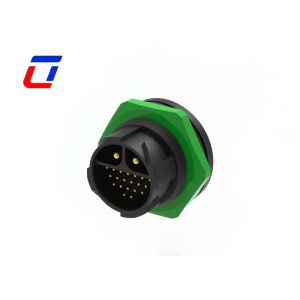

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt
Wire To Board
Quick Details of Multi pin connector waterproof
M25 2+20 Pin Waterproof Signal & Power Multi-Connector (300V
Wire-to-Board Type) is an integrated wire-to-board connection
system tailored for the composite needs of "streamlined power
supply + ultra-multi-channel data" in industrial scenarios.
With "2-pin high-power supply + 20-pin data cluster transmission +
M25 sealed interface" as its core design, it accurately matches
outdoor intelligent sorting equipment, large-scale environmental
monitoring stations, industrial robot end effectors and new energy
Battery Management Systems (BMS), completely solving the problems
of crowded board-end interfaces and low wiring fault tolerance
caused by traditional "multi-connector splicing".
Adopting M25 standard circular structure, the 2-pin main power
circuit and 20-pin data circuit are physically isolated by
independent insulating chambers, with a rated voltage of 300V . The
wire end and board end realize tool-free docking through the
quick-lock structure, which can simultaneously ensure stable power
supply and ultra-multi-channel data collection in outdoor humid,
dusty and vibrating environments.
This model connectors is specialized for various power signal
comblined applications, easy ooperation design in push locking
system, just need a second to insert, then it will lock
automatically.
Power & Singal together in one set design is getting more and more
popular to many device, which solve the power and signal connector
separated using perfectly, especially for the space limited
application.
Cable assembly work for Multi pin Connectors is supported in
Ulinkcon,just please share cable request in details, custom service
available.
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Main Features
- Field assembly version cable to board
- Cable assembly service available
- Quick lock fast relese structure
- Waterproof rated sufficient for most outdoor applications
- Power signal in one set
- 2pin power 20pin signal arrangement
| Electrical Parameters |
| Number of Poles | 22pin wire to board connector |
| Current Rating | 20A +5A |
| Voltage Rating | 300VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters |
| Voltage Rating | 600VAC max |
| Current Rating | 40A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Product Configuration
Product Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly
depend on the connector insulation material used, the spacing
between the size of contact. Some of the components or devices in
less than its rated voltage may not be completed to its functions.
