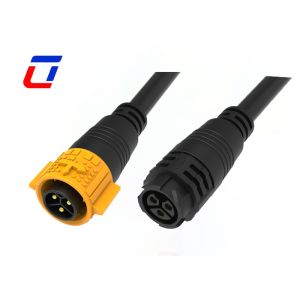

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Industrial
Production
Main Features
- Item Name : M19 Waterproof Cable Connector
- Specifications : Straight male-female mating, elbow male-female mating,
front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
- Coupling way: Self-locking
- Pins number :2-22 pins
- Plug : Assembly type and Injection type available
- Socket: Front Mount, Back Mount, PCB Mount
- Waterproof grade: IP67/ IP68
- Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
- Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
- Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm~16.5 mm
- Durability :3000 times
- Applicabletemperature: -40℃~105℃
Quick Description
The M19 3-pin 300V waterproof cable connector, tailor-made for
industrial production scenarios, serves as a core connection
component that balances safe transmission and efficient operation.
Centered on industrial-grade reliability in its design, it is
compatible with automated production lines, equipment control units
and other scenarios, perfectly solving the problems of signal and
power transmission in humid and dusty environments.
| Electrical Parameters |
| Number of Poles | 3 pin waterproof wire connector |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max5 |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
