Permanent Magnet Synchronization Portable Flood Control Submersible
Pump

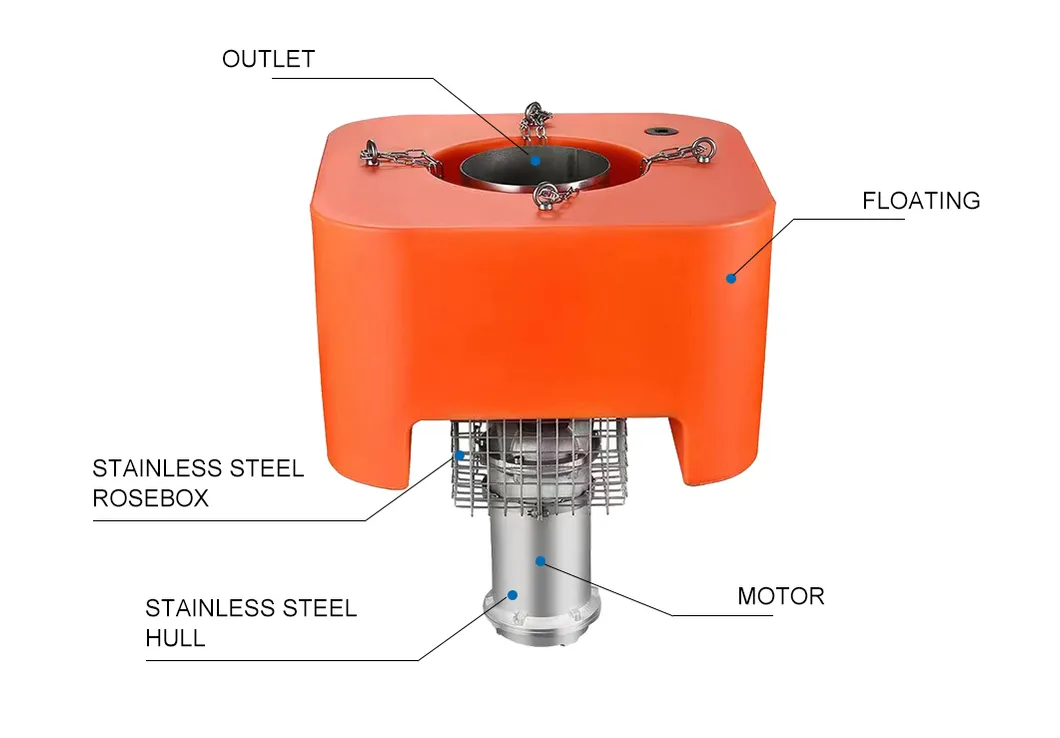

The portable permanent magnet variable frequency submersible pump
is a high-performance drainage pump specifically designed for urban
road flooding. Its main features include small size and light
weight, facilitating rapid deployment and operation. The pump uses
a stainless steel casing and a permanent magnet synchronous motor,
connected via a submersible cable, ensuring excellent corrosion
resistance and durability.
Technical Parameter
Capacity: 140~1430m3/h;
Head: 6~24m;
Power: 18.5~55kW;
Outlet: 200~300mm;
Weight: 32~75kg;
Product Features
Lightweight and Portable: Small size and light weight, facilitating
quick deployment and use.
High Efficiency and Energy Saving: Variable frequency technology
reduces energy consumption, making it environmentally friendly and
energy-saving.
Easy Installation: Simply immerse the pump in water, simplifying
the installation process.
Stable Operation: Low operating noise and stable operation.
Application
Flood control;
Effluent discharge of roads, tunnels, subway structures, and
buildings;
Bridge, tunnel, culvert pumping;
Basement, garage water discharge;
Agricultural drought-resistant water withdrawal;
Water source emergency drainage;
Mine water discharge;
Commercial shipyard, dry dock drainage;
Sea water transportation project;
Advantage
Large flow, proper head is suitable for flood control;
The casing is made of high-strength ss, which is light in weight
and easy to carry. It is suitable for manual handling;
No need to build the foundation, low cost, easy installation, easy
to replace installation location as needed;
Integrated structural design, long sealing and bearing life,
reliable operation;
Variable frequency control, adjustable speed, can be connected to
generator sets or mains directly;
Aviation connector for pump and control panel, eliminating the
cumbersome field wiring;
Directly placed at bottom of sump/river/sea, no need any additional
bolts & nuts, convenient installation;
