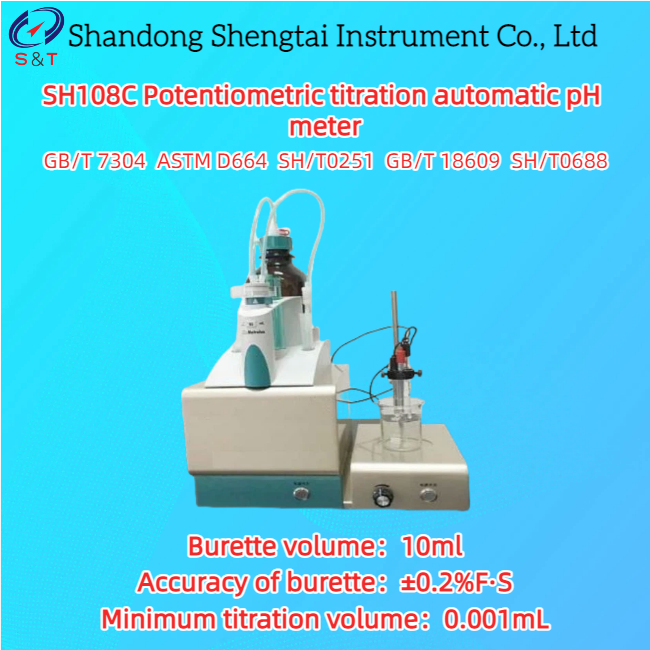

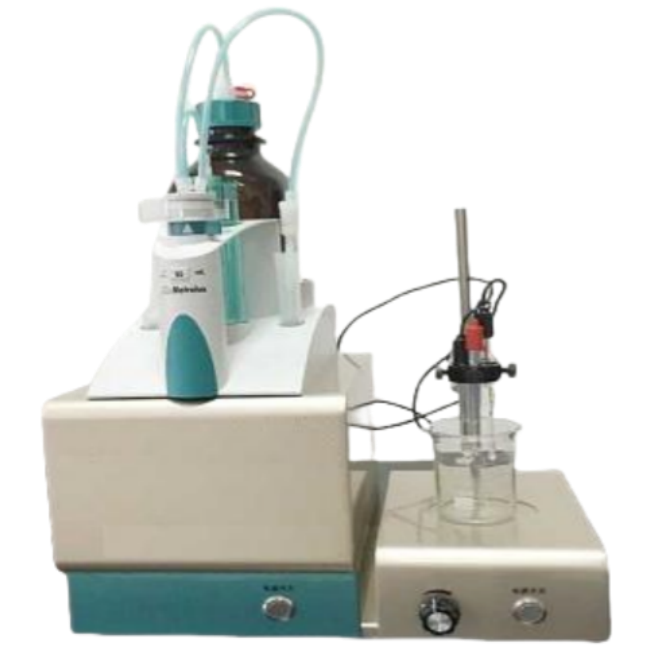

SH108C Potentiometric titration automatic pH meter
The SH108C potentiometric titration automatic acid-base value meter
is designed in accordance with GB/T 7304-2014 "Determination of
Acid Value of Petroleum Products (Potentiometric Titration Method)"
equivalent to ASTM D664, SH/T 0251-2004 "Determination of Alkali
Value of Petroleum Products (Perchloric Acid Potentiometric
Titration Method)", SH/T 0688 "Determination of Alkali Value of
Petroleum Products and Lubricants (Potentiometric Titration
Method)", NB/SH 0836 "Determination of Acid Value of Insulating Oil
(Automatic Potentiometric Titration Method)", GB/T 18609
"Determination of Acid Value of Crude Oil (Potentiometric Titration
Method)" and other standards
The instrument uses potentiometric titration to automatically
distinguish the titration endpoint and calculate the results. This
instrument is suitable for measuring the acid value in various
samples such as crude oil, petroleum products, lubricants, etc. in
the petrochemical industry. The determination of acid value is one
of the important indicators for determining the quality of oil
products. The titration system uses imported components, which are
processed from corrosion-resistant materials. The instrument
measures accurately and has a long service life.
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Used in the petrochemical industry to determine the acid value of
various samples such as crude oil, petroleum products, lubricants,
etc |
| Standards | GB/T 7304 ASTM D664 SH/T0251 GB/T 18609 SH/T0688 |
| Simple technical features or parameters | Real time display of potential curve (E-V), first derivative curve
(dE/dV), electrode potential (E), titration volume (V), and
titration results |
Main features:
● Universal microcomputer and operating system, Windows 10
operating system, using human-machine dialogue for operation, with
clear steps, simple and easy operation; Special software with a
Chinese window interface, operated by mouse and keyboard, and easy
to understand human-machine dialogue.
● Real-time display of potential curve (E-V), first derivative
curve (DE/DV), electrode potential (E), titration volume (V),
titration results
● Whole process titration data browsing, powerful data processing
function, easy to re-process the results;The titration results,
data and curves are stored in a large amount. The titration process
data can be saved as Excel documents for future inquiry
● Automatic printing curve, results and titration data
● Dynamic equivalence titration (DET), equivalence equivalence
titration (MET), preset endpoint potential titration (SET)
● Automatic "end point" judgment, effectively filter out false "end
point"
● Automatic cleaning, automatic fluid filling, automatic fixed
value liquid adding
Technical parameters:
| Measuring range | ≥0.001 mgKOH/g |
| Potential measurement range | -2000.0 ～ +2000.0 mV |
| Basic error of electronic unit | 0.1%F·S±0.1 mV |
| Input impedance | ≥1×1012 Ω |
| Burette volume | 10ml |
| Minimum titration volume | 0.001mL |
| Accuracy of burette | ±0.2%F·S |
| Precision | Meets or exceeds relevant standards |
| Operating system | Windows10 |
| Instrument size | 290*350*290 mm |
| Instrument weight | 8kg carbon, without computer |
| Package size | 580*380*420 mm |
| Package weight | 12kg |
Note: The appearance pictures, dimensions, volume and weight of the
instrument are for reference only. If there are any updates to the
instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Unit | 1 | |
| 2 | Computer host | Unit | 1 | Users should bring along their own |
| 3 | Key disk | Set | 1 |
| 4 | Printer | Set | 1 |
| 5 | Magnetic stirrer | Unit | 1 | |
| 6 | Serial communication line | Root | 1 | |
| 7 | Print cable | Root | 1 | Users should bring along their own |
| 8 | Short-circuit plug | Piece | 1 | |
| 9 | Fuse (1.5A) | Piece | 2 | It's in the mainframe power socket |
| 10 | Reference electrode | Piece | 1 | Our factory specially
|
| 11 | Measuring electrode | Piece | 1 |
| 12 | Magnetic agitator | Piece | 1 | |
| 13 | Power cord | Root | 1 | |
| 14 | Operating instruction | Copy | 1 | |
| 15 | Packing list | Copy | 1 | |
| 16 | Certificate of approval | Copy | 1 | |
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national
quality standards, and have a manufacturer's certificate of
conformity;
----The materials and main components provided meet the technical
requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one
year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument
quality issues that occur during the warranty period. Due to
equipment malfunction caused by the user's responsibility, we are
responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime
maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge a cost fee.
