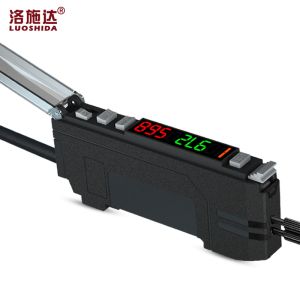

    RGB Three-Color Lighting Source Color-Sensitive NPN/PNP NO/NC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : LSD-C71
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3000PCS per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    RGB Three-Color Lighting Source Color-Sensitive NPN/PNP NO/NC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical

    Detection distanceFlush 1mm/Non-flush 2mm
    Response timeMARK mode 50 microseconds,C mode 130 microseconds
    Working temperature-10+55°C no freezing
    Output selectionLIGHT-ON/DARK-ON(Switch Selection)
    Display IndicatorOperation indicator: red LED, dual digital monitor: double 7-digit display, the threshold(4-digit green LED indicator) and the current value (4-digit red LED indicator) are lit together. Current value range :0 to 9999
    Detection MethodLight intensity detection MAKR and color automatic matching C and color + brightness value detection Cl
    Delay FunctionOpen delay timer/Open delay timer/Single timer/Open delay timer, optional. The meter display can be selected in duration:1ms to 9999ms
    Control outputNPN/PNP open collector 24V, Max100mA(only main parts) Max 20mA(Residual voltage :1V when expansion parts are connected
    Power supplyBetween 12 and 24VDC+10%, floating rate (P-P):Maximum 10% grade 2
    Ambient brightnessIncandescent lamp: Max. 20,000lux, daylight:Max. 30,000lux
