    High Precision Bending Beam Load Cell (0.5-5kg)

    Ask Lasest Price
    Brand Name : RUIJIA
    Model Number : RJ
    Certification : CE
    Price : USD1.5 ~12.8/piece
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 5-8 Work days
    • Product Details
    • Company Profile

    High Precision Bending Beam Load Cell (0.5-5kg)

    High Precision Bending Beam Load Cell (0.5-5kg)

    High Precision Bending Beam Load Cell (0.5-5kg)

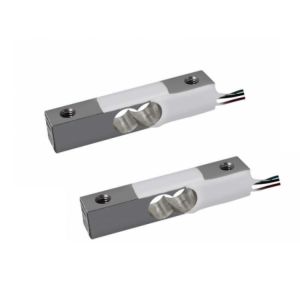

    The Aluminum alloy parallel load cell sealed with white glue, high precision weighing load cell for jewelry scale with multiple accuracy levels.


    Payment100% payment before shipment
    Capacities0.5kg ; 1, 2, 3, 5 (kg)
    MaterialAluminum Alloy
    Dimension52*6*10mm (0.5kg)
    52*9*10mm (1-5kg)
    Rated Output0.8±0.15 mV/V ; 1.0 mV/V
    Protection ClassIP65
    CableΦ0.8 × 0.3m

    Key Features:

    Aluminum alloy material

    Capacity: 0.5-5kg

    Precision: 0.03%R.O.

    Protection class: IP65

    Rated Output: 0.8-1.0 mV/V


    Usage & Applications:

    Jewelry scale


    Dimension:


    Specification:


    Rated Capacities0.5kg; 1,2,3,5 (kg)
    Rated Output0.8±0.15 mV/V 1.0 mV/V
    Zero Balance±0.1mV/V
    Non-linearity0.03 %R.O.
    Hysteresis0.03 %R.O.
    Repeatability0.03 %R.O.
    30mins Creep0.03 %R.O.
    30mins Return0.03 %R.O.
    Safe Overload150 %R.O.
    Ultimate Overload200 %R.O.
    Temperature Effect On Output0.01%R.O./℃
    Temperature Effect On Zero0.05 %R.O./℃
    Input Impedance1115±10% Ω
    Output Impedance1000±10% Ω
    Insulation Impedance≥2000 MΩ/(50VDC)
    Recommended Excitation5~12 VDC
    Maximum Excitation15 VDC
    OperatingTemperatureRange-20~60 ℃
    ConstructionAluminum Alloy
    Protection ClassIP65
    CableΦ0.8×0.3m
    Recommended Platform Size
    Mode of ConnectionRed(EXC+),Black(EXC-),Green(SIG+),White(SIG-)

    Company Information



    Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
