Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer

    Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers

    Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers
    • Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers
    • Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers
    • Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers
    • Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers
    • Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers
    • Buy cheap Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer from wholesalers

    Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer

    Ask Lasest Price
    Price : Individual quotation according to different requirements
    Brand Name : Peiyu
    Model Number : customized
    Certification : CE,ISO9001:2008,High-tech enterprise
    Payment Terms : L/C,T/T
    Supply Ability : 300 pcs per month
    Delivery Time : 30-40 workdays
    • Product Details
    • Company Profile

    Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer

    Product Description

    Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer

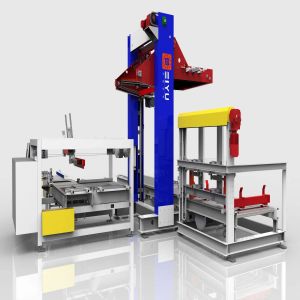

    The gantry palletizer is to put cartons, plastic bags, film bags or other packages on pallets (wooden, plastic) according to a certain arrangement, and perform automatic stacking. It can stack multiple layers, and then automatically transport them to the solid pallet station, which is convenient for forklifts to transport to the warehouse for storage. The double-channel gantry palletizer divides the boxes into two lanes and enters the unscrambling platform through the box-separating mechanism, and then is pushed by the unscrambling platform to the lifting platform for palletizing, and the stacking efficiency is higher. This equipment adopts PLC+ touch screen control to realize intelligent operation and management, which is simple and easy to master, which can greatly reduce labor force and labor intensity. It is designed with the concept of high speed, stability and space saving. The stacking adopts a separate take-off plate, which is faster and more space-saving. Strong applicability, one machine with multiple functions, quick adjustment, can be used for palletizing products of various specifications

    Product Parameters
    Technical parameters
    Operating modeStacking layer by layer
    Capacity60 cases /min
    Applicable ProductCarton,Plastic case,Shrink film packaging
    Conveyor height750mm
    Pallet conveyor height550mm
    Pallet sizeStandard pallet (as demanded
    Case sizeCustomized
    Palletizing   methodCustomized
    Pallet storage15 pallets
    Total Power21kW
    Weight920 0kg
    Dimension14500*7000*3750mm

    Automatic Gantry Palletizer Water Bottle Case Box Carton PalletizerAutomatic Gantry Palletizer Water Bottle Case Box Carton PalletizerAutomatic Gantry Palletizer Water Bottle Case Box Carton PalletizerAutomatic Gantry Palletizer Water Bottle Case Box Carton PalletizerAutomatic Gantry Palletizer Water Bottle Case Box Carton Palletizer


    Certifications

    Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer

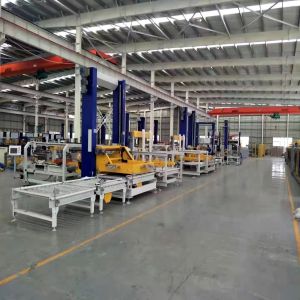

    Work shop

    Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer

    Our customers

    Automatic Gantry Palletizer Water Bottle Case Box Carton Palletizer
