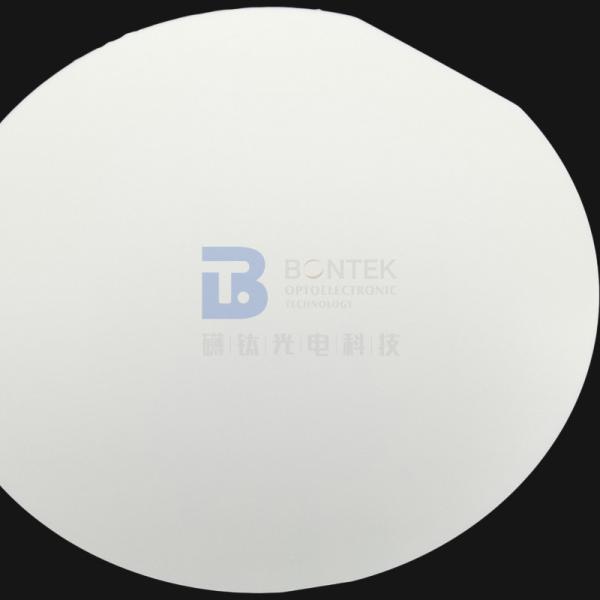

    Customized LiTaO3 Wafer with Exceptional Ferroelectric and Electro Optic Properties for in Telecommunications and Sensors

    Ask Lasest Price
    Brand Name : CQT
    Model Number : Lithium Tantalate (LiTaO3)
    Certification : ISO:9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pieces/Month
    Delivery Time : 1-4 weeks
    • Product Details
    • Company Profile

    Customized LiTaO3 Wafer with Exceptional Ferroelectric and Electro Optic Properties for in Telecommunications and Sensors

    Customized LiTaO3 Wafer with Exceptional Ferroelectric and Electro Optic Properties for in Telecommunications and Sensors


    Experience unmatched precision in frequency control and optical modulation with our premium lithium tantalate (LiTaO₃) wafers. Renowned for superior piezoelectric, electro-optic, and acousto-optic properties compared to standard lithium niobate (LiNbO₃), LiTaO₃ is the material of choice for high-stability oscillators, surface acoustic wave (SAW) filters, and nonlinear optical devices.

    Our wafers, available in X-cut, Y-cut, and rotated Y-cuts, feature a higher Curie temperature (>600°C) and lower dielectric losses, ensuring reliable performance under extreme thermal and electrical conditions. With excellent electro-optic coefficients (r₃₃ ≈ 30 pm/V) and acoustic velocity (>4,200 m/s), they excel in 5G RF filters, optical phase modulators, and frequency doubling (SHG) applications.

    Precision-manufactured with ultra-low surface roughness (<0.5 nm RMS) and customizable dimensions, each wafer undergoes rigorous quality testing to meet stringent industry standards.

    Elevate your technology with our LiTaO₃ wafers—where stability meets innovation. Contact us today to discuss your specifications and unlock the full potential of this extraordinary material.

    Precision Engineered. Performance Optimized.


    Material Characteristics

    Material

    3" 4" 6" 8" LN wafer Saw/Optical grade

    3" 4" 6" LT wafer Saw/Optical grade

    OrientationX/ Z/ Y41°/ Y64°/ Y128°/ YZ/ YX or CustomizedX112°/ Y28°/ Y36°/ Y42°/ YZ or Customized
    Curie Temp1142°C±3°C605°C±3°C
    Doped withZn, MgO, single or double doped availableFe doped (Yellow Black)
    Single DomainCompleted Polarization (White) / Reducted (Black)

    Processing Capacity

    Surface finishSingle or Double side polish (DSL/SSP/DSP available)
    Thickness0.18/0.25/0.35/0.50/1.00 + mm0.25/0.35/0.50/1.00+mm
    TTV< 1~5µm
    BOW± (25µm ~40um )
    Warp<= 25µm
    LTV (5mmx5mm)<1.5 um
    PLTV(<0.5um)≥98% (5mm*5mm) with 2mm edge excluded
    EdgeCompl't with SEMI M1.2@with GC800# .regular at C typed
    Orientation flatsAvailable, per request
    Polished side RaRoughness Ra<=5A
    Back Side CriteriaRoughness Ra:0.5-1.0µm GC#1000
    Edge RoundingCompliant with SEMI M1.2 Standard/refer to IEC62276
    Cracks, saw marks, stains

    None





    Acceptance Check


    1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.


    2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.


    3. Please open the vacuum package in a clean room when the products are to be applied.


    4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
