Pushable Fiber Cable Pre-Terminated Metal Head SC/APC FTTH for Tool-Free Installation
Pushable Patch Cords is a type of pushable fiber optic jumper, manufactured for quick, reliable and uncomplicated fiber
deployment in FTTH and FTTX networks. This pre-terminated FTTH drop
cable design is considered for easy routing into indoor walls,
conduits, and places where microduct fiber optic solutions are
used, without the need of coupling or splicing.

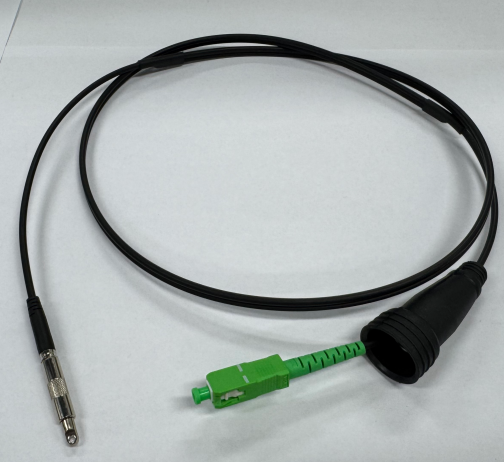

Yingda pre terminated the fiber optic cable are with pushable SC
connector at one side, which can be directly pulling through a
wall, then docking with fiber optic adapters, while the other side
is standard SC connectors with rubber seal, which is designed to
connect with the outdoor fiber splitter boxes, rubber seal prevent
water from entering.
Product Description:
YINGDA Pushable cable assemblies offer a flexible, pushable
pre-terminated fiber optic drop solution for fast and reliable FTTX
deployments.
The bullet pushable connector enables the pre-connectorized cable
to be installed through microducts and small holes that are typical
of most FTTX scenarios. This cable can be installed without using
large conduits or drilling big holes through the customer's wall.
This bullet Pushable assembly can be successfully pushed through
small holes and microduct . Hand push distances vary according to
bend frequency and duct quality; The rugged round drop cable with
the pushable pre-terminated connector, reduces the cost of fiber
deployments as well as the intrinsic skill and difficulty of
handling and connecting customer drop cables.
Specification
Fiber Mode | Single mode |
Fiber Count | 1 |
Polish or Ferrule Interface Type | APC |
Connector A | Metal SC APC |
Connector B | SC APC with Rubber boot |
Cable Lengths | customized |
Jacket Materials | Indoor/outdoor LSZH Material |
Outer Jacket Color | Black or White |
Outer Jacket Diameter(mm) | 3.0mm or 2.0*5.0 Flat Drops |
Fiber Type | G657A2 |
Inner Cable Diameter | 0.9mm |
Inner cable Color | Blue |
Storage Temperature | -20°C to 60°C |
Installation Temperature | -5°C to 50°C |
Operating Temperature | -20°C to 60°C |
Crush(N/100mm) | 1000 |
Maximum Tensile Load (Long term) | 150N |
Minimum Tensile Load (Short term) | 400N |
Figure 8 Fiber Cable Specification
| Item | Value |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Polish manner | UPC, APC(8°), PC |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master)
≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode
UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement
(For Single mode) | Ferrule End face Radius:
7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
G.657A2 Fiber Parameters
| No. | Items | Unit | Specification |
| G657A2 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 |
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
| 1turn×10mm radius @1625nm | dB | ≤1.5 |
Application:
Features:
Terminations designed and tested to Telcordia GR-326
Decreased deployment times and reduced installation costs by
eliminating in-field splicing.
Tool-less Installation, wall protective sleeve is easily removed
and outer housing snaps into place
Guaranteed Insertion loss/return loss
REACH & RoHS compliant

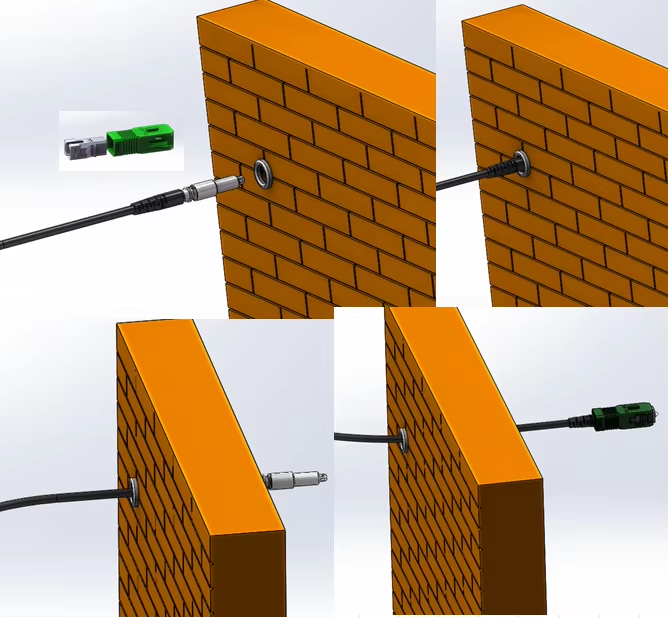

The one side with metal connector can be diretly pulling through a
wall,and this metal connector of connector is made of alloy material, which
is easy to plug and unplug, with small fluctuation in insertion
loss, high compressive strength, high installation density, high
temperature resistance, and not easy to oxidize,also can used for small pipelines or small wall holes.
The one side is standard SC connectors with rubber seal, which is
designed to connect with the outdoor fiber splitter boxes, rubber
seal prevent water from entering.
The length can be customized to your needs. 1M,5M,10M,20M,50M,100M
and more.
