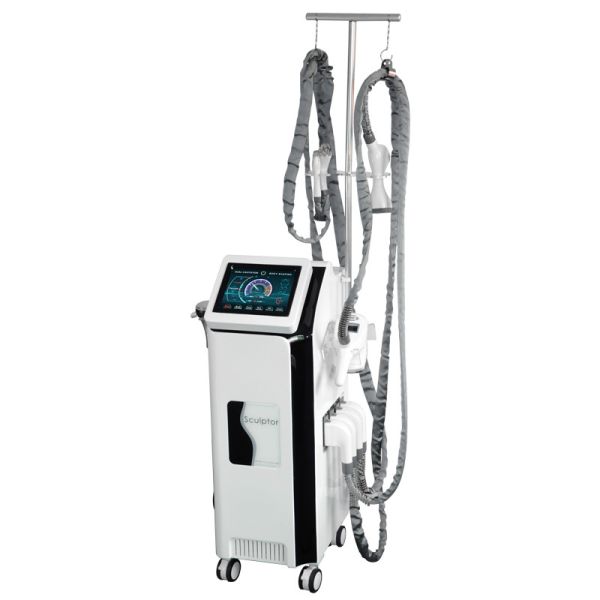

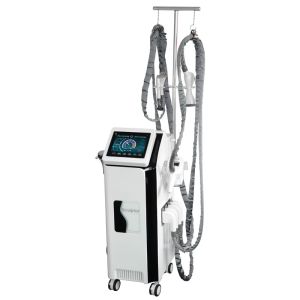

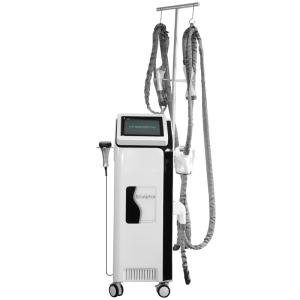

vela V10 V9 V8 Vela Slim Body Slimming Body Shaping Cavitation
Vacuum RF Roller
Theory:
1.Infrared laser lowers skin impedance by heating skin and RF
energy penetrates deeply into connective tissue.
2.The synergistic combination of infrared laser and conducted RF
energy increases the oxygen intracellular diffusion by heating
skin.
3.The technology that vacuum folds skin makes RF energy penetrate a
specific folded skin, significantly improving effect and safety,
even for the upper eyelid area treatment.
4.Vacuum plus specially-designed rollers manipulate leads even RF
penetration (5-15mm). Meanwhile,vacuum and roller mechanical tissue
manipulation nips and stretch fibrillar connective
tissue,effectively break down subcutaneous fat as well as extruded
capillary vessel,increase lymphatic drainage,promote metabolism and
reduce or shrink the size of the actual fat chamber,thereby greatly
improving body shaping effect.
Mechanical Manipulation (Vacuum +/- Massage mechanism):
a. Stimulates lymphatic and blood circulation
b. Facilitates fibroblast activity
c. Reduces viscosity of fat cell clusters.
d. Promotes vasodilation and extravasation of oxygen and nutrients
e. Enables heating at different depths vacuum&rf slimming
equipment
Heating (infrared + radio frequency energies):
a. Enhances blood circulation and increases oxygen dissociation
from oxyhemoglobin
b. Facilitates fibroblast activity
c. Increases metabolism of fat cells. suslaser beauty equipment
d. Improves skin texture
Technical Specifications:
| It | Specifications |

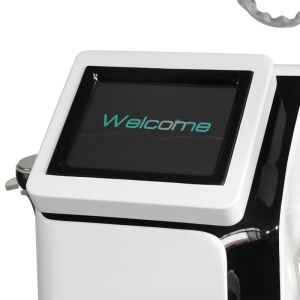

| LCD screen | 1) Display screen: 10.4/8″ Chromatic Screen 2) Display screen of handpiece Display screen on handpiece 1: 2.4″ Display screen on handpiece 2: 1.9″ |
| Working Mode | Pulse,Pulse width:1s-9s |
| Pulse width | 0.5s-7.5s |
| Negative pressure | 1) Absolute value: 80kPa -10kPa (60.8cmHg - 7.6cmHg) 2) Relative value: 20kPa -90kPa (15.2cmHg – 68.4cmHg) |
| Rev of roller | 0-36 rpm |
| Working mode for roller | 4 types |
| Safety checking | Real time on line |
| RF frequency | 1-5MHz |
| RF energy density | Max: 60J/cm |
| Laser wavelength | 940nm |
| Laser power | MAX 20W |
| Cavitation | 40K |
| Number of handpiece | 5 |
| Treatment area | 4mmx7mm,8mmx25mm,30mmx50mm,40mmx60mm |
| Rated input power | 750VA |
| Mode of power supply | AC230V±10%,50Hz±1Hz/ AC110V±10%,60Hz±1Hz (Optional) |
| G.W. | 72.7KG |
| Packing size | 127*70*75CM |
| Packing list |
No. 1 big vacuum RF laser head for body * 1
No. 2 vacuum RF laser head for arms * 1
No. 3 vacuum RF laser head for face * 1
No. 4 small vacuum RF laser head for eyes * 1
40K cavitation head * 1
Power cord * 1
Rotary knob screws * 12
Acrylic accessories hanging rack * 2
Aluminum holder * 1
Acrylic accessories hanging rack screws * 6 |
Functions:
1.Face lifting and skin tightening
2.Body shaping/body circumference reduction
3.Face and neck wrinkle eliminating
4.Removes acne and black circle around eyes,eye bag
5.Improving skin-metabolism
6.Unique for upper eyelid
7.Skin surface smooth/massage
8.Cellulite reduction
