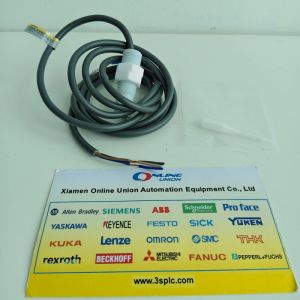

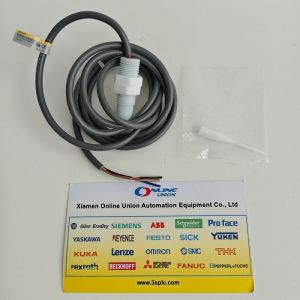

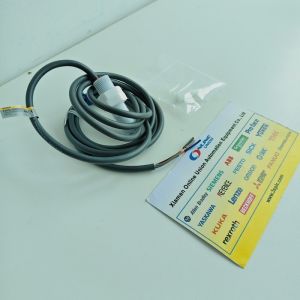

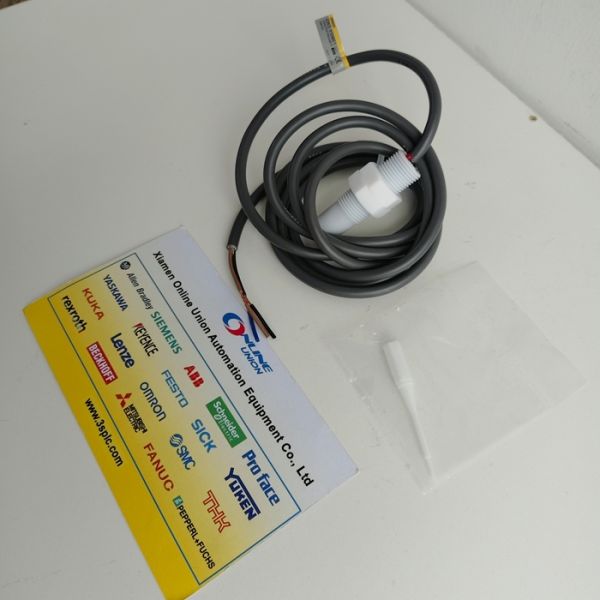

E2KQ-X10ME1 2M OMRON Chemical-resistant Proximity Sensor

Omron E2KQ-X10ME1 2M Chemical-resistant Proximity Sensor

Chemical-resistant Proximity Sensor, M18, Unshielded, Sensing distance: 10 mm, DC 3-wire, NPN output, NO, Pre-wired model, 2 m.

The E2KQ-X10ME1 2M is a chemical-resistant capacitive proximity switch manufactured by Omron, designed for precise detection of conductive and dielectric objects in harsh industrial environments. It features a fluororesin-coated case that provides excellent resistance to chemicals and oil, making it suitable for applications in food processing, pharmaceutical manufacturing, and chemical handling. The switch has a standard detection distance of 10 mm, with an adjustable range of 6 to 10 mm, allowing for flexibility in various setups. It comes with a 2-meter pre-wired cable for easy installation and connection.

Technical Specifications:

Type: Capacitive Proximity Switch

Brand: Omron

Model: E2KQ-X10ME1 2M

Detection Distance: Standard 10 mm, adjustable range 6 to 10 mm

Detectable Objects: Conductors and dielectrics (standard sensing object: grounded metal plate 50 × 50 × 1 mm)

Response Frequency: 35 Hz

Power Supply Voltage: 12 to 24 VDC (operating range: 10 to 30 VDC), ripple (p-p): 10% max.

Current Consumption: 15 mA max.

Control Output:

Switch Capacity: 100 mA

Residual Voltage: 1.5 V max. (load current: 100 mA, cable length: 2 m)

Output Type: DC 3-wire, NPN, NO (Normally Open)

Indicators: Detection indicator (red LED) for clear status indication

Protection Circuits: Reverse polarity protection, surge suppressor

Ambient Temperature Range:

Operating: -10 to 55°C

Storage: -25 to 55°C (no icing or condensation)

Ambient Humidity Range: Operating/storage: 35% to 85% (no condensation)

Temperature Influence: ±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C

Voltage Influence: ±2% max. of sensing distance at rated voltage ±20%

Insulation Resistance: 50 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration Resistance: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock Resistance: 500 m/s², 3 times each in X, Y, and Z directions

Degree of Protection: IP66 (IEC), in-house standards: oil-resistant

Connection Method: Pre-wired (standard cable length: 2 m)

Weight (Packed State): Approximately 150 g
