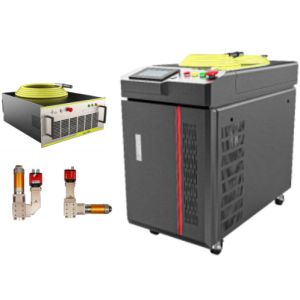

QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization

    Buy cheap QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization from wholesalers

    Buy cheap QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization from wholesalers
    • Buy cheap QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization from wholesalers
    • Buy cheap QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization from wholesalers
    • Buy cheap QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization from wholesalers

    QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-QCW
    Certification : CE
    Price : USD / Set
    Payment Terms : T/T
    Supply Ability : 2000 Sets / year
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization

    QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization
    Quasi-Continuous Wave (QCW) fiber lasers deliver extremely high instantaneous energy over extended pulse durations, making them highly suitable for metal processing scenarios requiring strict thermal stability and energy concentration. Whether employed for precise metal spot welding or continuous linear welding, their output mode maintains excellent repeatability. When processing various metals, these lasers effectively control molten pool variations, enhancing the predictability of the welding process. They are particularly ideal for applications demanding rigorous welding precision and uniform heat distribution.
    QCW Laser Welder in operation
    Key Features
    • QCW fiber laser technology suitable for long pulse width and high-energy pulse output
    • Welding solution approaches for upgrading traditional YAG equipment
    • Significant reduction in maintenance requirements through optimized construction
    • Fully independently developed optical control system and output coordination platform
    Technical Specifications
    ModelHW-Q-150HW-Q-300
    Input VoltageAC220V 50/60HzAC220V 50/60Hz
    Machine Size665*450*300 mm665*450*300 mm
    Wavelength1070nm ± 10%1070nm ± 10%
    Frequency100 Hz2 KHz
    Machine Weight22 Kg28 Kg
    Laser Power150 W300 W
    Peak Power1500 W3000 W
    Pulse Width0.5-500.5-50
    Pulse Energy15 J30 J
    Power Stability≤ ± 1%≤ ± 1%
    Power Consumption2 Kw2.5 Kw
    Cooling MethodAir CoolingAir Cooling
    Applications
    The entire system, from the multi-beam distribution module and energy management structure to the output timing coordination system, is built on independently developed technology. This platform can flexibly adjust multiple outputs according to production line requirements, ensuring energy consistency and synchronized response speed for each beam. The self-developed system architecture not only enhances overall reliability but also provides greater compatibility when integrating with automated platforms and implementing complex process schemes. On this basis, users can expand to different applications and achieve higher-level processing configurations.
    About Shenzhen Hanwei Laser
    Shenzhen Hanwei Laser ranks among the globe’s scarce enterprises endowed with independent R&D capabilities for the full hardware and software ecosystem of high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product portfolio mainly encompasses diverse laser welding solutions as well as supporting laser welding control systems.
    Since 2019, Shenzhen Hanwei Laser has been dedicated to the independent R&D and innovation of laser welding machines, leveraging core advantages derived from in-house R&D, design, and manufacturing capabilities.
    Hanwei Laser facility overview Laser welding application example Precision laser welding demonstration QCW Laser Welder close-up
