    Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

    Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

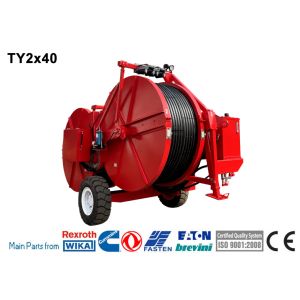

    TY2x40-1800 Hydraulic Tensioner

    The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
    Characteristics
    • Bull-wheel diameter: 1800mm
    • Max conductor diameter: 40mm
    • Groove number: 2x5
    • Total weight: 7790kg
    • Overall dimension (length*width*height): 4600×2250×2700mm

    Performance

    • Max intermittent tension: 2x45kN
    • Max continuous tension: 2x40kN
    • Speed at max tension: 2.5km/h
    • Max speed: 5km/h
    • Pull at max speed: 2x20kN
    • Max reverse pulling force: 2x35kN
    • Max reverse pulling speed: 5km/h
    Main configuration
    • Engine: Cummins
    • Hydraulic pump: German Rexroth/Dnish Danfoss
    • Main motor:German Rexroth/French Leduc
    • Speed reducer: German Rexroth / Italy Bonfiglioli
    • Main hydraulic valves: USA Sun / Italy ATOS
    Engine
    • Diesel: 77kw(103hp)
    • Cooling system: water
    • Electrical system: 24V

    Hydraulic Transmission

    • The machine can realize step less speed.
    • The machine is provided with tension presetting system.

    Configuration

    • Hydraulic dynamometers
    • Hydraulic oil cooling system
    • Digital speed and meter counter
    • Hydraulic front stabilizer
    • Grounding connection point
    • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

    Additional Devices

    • Lighting system for the trailer
    • 2 hydraulic rope/conductor clamp(extra charge)
    • Swivel guide rope roller
    • Trailer for towing at max speed of 15 km/h
    • Digital speed and meter counter
