    Transmission Line Stringing Equipment TY2x40-1800 Hydraulic Tensioner

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY2x40-1800
    Certification : ISO9001
    Price : USD57,500-61,000/set
    Supply Ability : 10Sets/Month
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Transmission Line Stringing Equipment TY2x40-1800 Hydraulic Tensioner

    Transmission Line Stringing Equipment TY2x40-1800 Hydraulic Tensioner

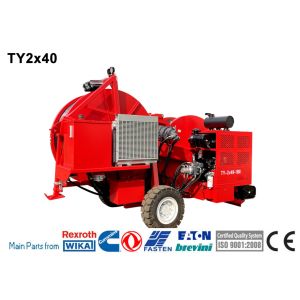

    TY2x40-1800 Hydraulic Tensioner

    The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

    Characteristics

    Bull-wheel diameter: 1800mm

    Max conductor diameter: 40mm

    Groove number: 2x5

    Total weight: 7790kg

    Overall dimension (length*width*height): 4600×2250×2700mm

    Performance

    Max intermittent tension: 2x45kN

    Max continuous tension: 2x40kN

    Speed at max tension: 2.5km/h

    Max speed: 5km/h

    Pull at max speed: 2x20kN

    Max reverse pulling force: 2x35kN

    Max reverse pulling speed: 5km/h

    Main configuration

    Engine: Cummins

    Hydraulic pump: German Rexroth/Dnish Danfoss

    Main motor:German Rexroth/French Leduc

    Speed reducer: German Rexroth / Italy Bonfiglioli

    Main hydraulic valves: USA Sun / Italy ATOS

    Engine

    Diesel 77kw(103hp)

    Cooling system water

    Electrical system 24V

    Hydraulic Transmission

    The machine can realize step less speed.

    The machine is provided with tension presetting system.

    Configuration

    Hydraulic dynamometers

    Hydraulic oil cooling system

    Digital speed and meter counter

    Hydraulic front stabilizer

    Grounding connection point

    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

    Additional Devices

    Lighting system for the trailer

    2 hydraulic rope/conductor clamp(extra charge)

    Swivel guide rope roller

    Trailer for towing at max speed of 15 km/h

    Digital speed and meter counter
