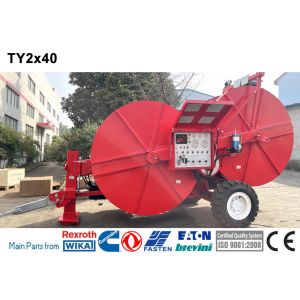

    Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY2x40-1800
    Certification : ISO9001
    Price : USD57,500-61,000/set
    Supply Ability : 10Sets/Month
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner

    Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner


    TY2x40-1800 Hydraulic TensionerThe machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

    CharacteristicsBull-wheel diameter1800mm
    Max conductor diameter40mm
    Groove number2x5
    Total weight7790kg
    Overall dimension (length*width*height)4600×2250×2700mm

    PerformanceMax intermittent tension2x45kN
    Max continuous tension2x40kN
    Speed at max tension2.5km/h
    Max speed5km/h
    Pull at max speed2x20kN
    Max reverse pulling force2x35kN
    Max reverse pulling speed5km/h

    EngineDiesel77kw(103hp)
    Cooling systemwater
    Electrical system24V

    Main configurationEngineCummins
    Hydraulic pumpGerman Rexroth/Dnish Danfoss
    Main motorGerman Rexroth/French Leduc
    Speed reducerGerman Rexroth / Italy Bonfiglioli
    Main hydraulic valvesUSA Sun / Italy ATOS

    ConfigurationHydraulic oil cooling system
    Grounding connection point
    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
    Hydraulic dynamometers
    Hydraulic front stabilizer
    Digital speed and meter counter

    Additional Devices2 hydraulic rope/conductor clamp(extra charge)
    Digital speed and meter counter
    Lighting system for the trailer
    Swivel guide rope roller
    Trailer for towing at max speed of 15 km/h

    Hydraulic TransmissionThe machine can realize step less speed.
    The machine is provided with tension presetting system.
