    Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY2x40-1800
    Certification : ISO9001
    Price : USD57,500-61,000/set
    Supply Ability : 10Sets/Month
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

    Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

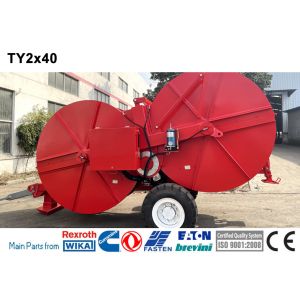

    TY2x40-1800 Hydraulic TensionerThe machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
    PerformanceMax intermittent tension2x45kN
    Max continuous tension2x40kN
    Speed at max tension2.5km/h
    Max speed5km/h
    Pull at max speed2x20kN
    Max reverse pulling force2x35kN
    Max reverse pulling speed5km/h
    CharacteristicsBull-wheel diameter1800mm
    Max conductor diameter40mm
    Groove number2x5
    Total weight7790kg
    Overall dimension (length*width*height)4600×2250×2700mm
    Main configurationEngineCummins
    Hydraulic pumpGerman Rexroth/Dnish Danfoss
    Main motor

    German Rexroth/French Leduc

    Speed reducer

    German Rexroth / Italy Bonfiglioli

    Main hydraulic valvesUSA Sun / Italy ATOS
    EngineDiesel77kw(103hp)
    Cooling systemwater
    Electrical system24V
    Additional Devices

    2 hydraulic rope/conductor clamp(extra charge)

    Digital speed and meter counter

    Lighting system for the trailer

    Swivel guide rope roller

    Trailer for towing at max speed of 15 km/h

    Hydraulic Transmission

    The machine can realize step less speed.

    The machine is provided with tension presetting system.
    Configuration

    Hydraulic oil cooling system

    Grounding connection point

    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

    Hydraulic dynamometers

    Hydraulic front stabilizer

    Digital speed and meter counter
