| Brand Name : | HANYU |
| Model Number : | TY2x40-1800 |
| Certification : | ISO9001 |
| Price : | USD57,500-61,000/set |
| Supply Ability : | 10Sets/Month |
| Delivery Time : | 15-35days |

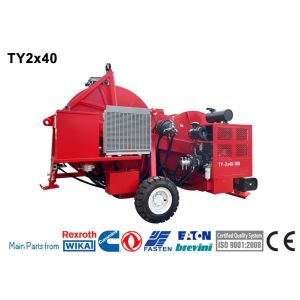

Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner
| TY2x40-1800 Hydraulic Tensioner |
|
|
| Characteristics |
| Max conductor diameter: 40mm |
| Bull-wheel diameter: 1800mm |
Total weight: 7790kg |
| Groove number: 2x5 |
| Overall dimension (length*width*height): 4600×2250×2700mm |
Performance |
Max continuous tension: 2x40kN |
| Max intermittent tension: 2x45kN |
| Max speed: 5km/h |
| Speed at max tension: 2.5km/h |
| Max reverse pulling speed: 5km/h |
Max reverse pulling force: 2x35kN |
| Pull at max speed: 2x20kN |
| Main configuration |
Engine: Cummins |
Speed reducer: German Rexroth / Italy Bonfiglioli |
Hydraulic pump: German Rexroth/Dnish Danfoss |
| Main hydraulic valves: USA Sun / Italy ATOS |
Main motor: German Rexroth/French Leduc |
Engine |
Diesel: 77kw(103hp) |
Cooling system: water |
| Electrical system: 24V |
| Hydraulic Transmission |
| The machine is provided with tension presetting system. |
The machine can realize step less speed. |
Additional Devices |
| Trailer for towing at max speed of 15 km/h |
Lighting system for the trailer |
2 hydraulic rope/conductor clamp(extra charge) |
| Digital speed and meter counter |
| Swivel guide rope roller |
Configuration |
| Digital speed and meter counter |
Hydraulic dynamometers |
Hydraulic oil cooling system |
| Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor |
| Hydraulic front stabilizer |
| Grounding connection point |

|
