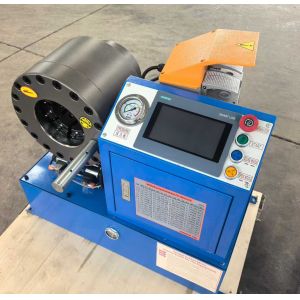

6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool
And 10 Dies For Versatile Crimping With Rack Can Rach Up Tp 2.5
Inch Crimping Size
6-51mm Hydraulic Hose Crimping Machine: Efficiency and Versatility
The 6-51mm Hydraulic Hose Crimping Machine is a highly efficient
tool designed for precise crimping of hydraulic hoses,
accommodating sizes up to 2.5 inches. This machine features a fast
change mould tool and comes equipped with 10 interchangeable dies,
making it versatile enough to handle a variety of applications in
automotive, construction, and manufacturing industries. With its
robust design and user-friendly capabilities, this machine ensures
reliability and high performance.
Key Features
• Versatile Crimping Range: Designed to crimp hoses ranging from
6mm to 51mm and capable of handling larger sizes up to 2.5 inches,
this machine is suitable for various hydraulic applications,
allowing for flexibility in tasks.
• Fast Change Mould Tool: The innovative fast change mould tool
facilitates quick and simple transitions between different dies,
significantly reducing downtime and improving productivity in
high-demand environments.
• Comprehensive Die Set: The machine includes 10 interchangeable
dies, allowing users to easily adjust for different hose sizes.
This versatility makes it an essential tool for workshops handling
a range of hydraulic fittings.
• Sturdy Rack Design: The included rack provides stability and
support during operation, ensuring precise and secure crimping,
which is vital for maintaining the integrity of hydraulic
connections.
• Durable Construction: Built from high-quality materials, this
hydraulic hose crimping machine is designed for durability and
long-lasting performance, capable of withstanding the rigors of
daily use.
Advantages
1. Increased Efficiency: The combination of the fast change mould
tool and versatile die set allows operators to complete crimping
tasks with high speed and precision, maximizing workflow.
2. Broad Application Range: With the versatility to handle hoses up
to 2.5 inches, this machine is ideal for various industries,
including automotive, industrial manufacturing, and construction.
3. User-Friendly Operation: Designed with an intuitive interface,
the machine is easy to operate, making it accessible for both
experienced technicians and those new to hydraulic hose crimping.
4. Cost-Effective Solution: By consolidating multiple capabilities
into one machine, businesses can reduce equipment costs while
ensuring high-quality crimping results across different tasks.
5. Safety Features: Constructed with safety in mind, this machine
includes protective mechanisms to safeguard both the operator and
the equipment during use.
Technical Specifications
| Model | FY-P38 Hose Crimping Machine |
| Crimping Range | 6-38mm (1/4"-1.5") |
| Crimping Force | 300T |
| System Pressure | 26Mpa/31.5Mpa (Optional) |
| Accuracy | 0.01mm |
| Work Efficiency | 200 pcs/h |
| Voltage Options | 220V/240V/380V/415V |
| Motor Power | 3KW/4KW |
| Dimensions (L*W*H) | 950*630*700 mm |
| Weight | 275kg |
| Die Sets Included | 8 sets |
Premium Components
Advanced PLC System: Multifunctional control panel with different operation modes
High-Quality Die Sets: 8 die sets with hardness 59-63HRC and quick change tool
Premium Motor: World-famous motor with high stability
Forged Oil Cylinder: Higher anti-wear ability compared to traditional technology
Applications
The FY-P38 is a high-performance hose crimper capable of crimping:
- High pressure stainless steel braided hydraulic oil hoses
- Industrial flexible pipes
- Air or water hoses
- Cables and wires
- Steel and iron tubes
- Brake lines in automotive systems
- Air suspension or springs
Product Images
Product Video
Note:
- Non-standard die sets available
- Customized die sets can be provided
Special voltages (220V, 240V, 380V, 415V) available
UC Control High Pressure Hose Crimping Machine, High Configuration
hydraulic hose machine, Numerically Controlled Hydraulic Hose
Crimping Machine
