90 degrees output shaft worm gearbox with cylinder DC brushed motor
Description:

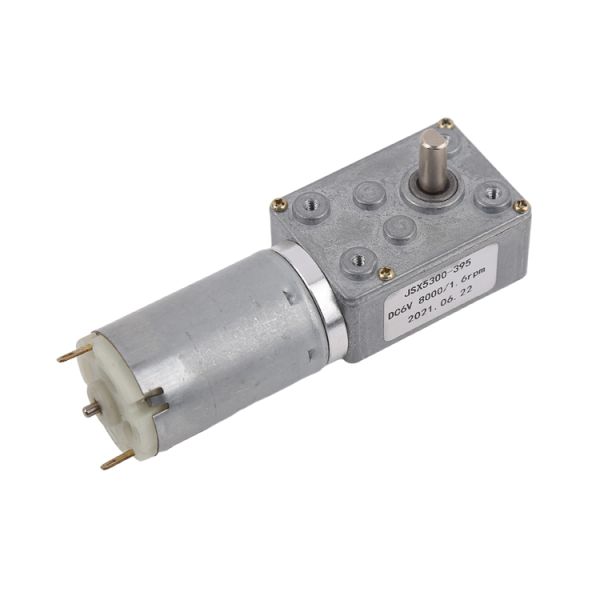

This is JSX5300 series gearbox motor , it’s a DC brushed motor
attached with a worm gearbox.
The output shaft is 8mm diameter D shaft, shaft length is
customizable.
Also the gearbox can be changed to double shaft design.
We have multiple gear ratio for you too choose.
Feel free to contact us if you are interested.
Parameters:
| Motor type | DC brush motor + worm gear box |
| Rated voltage | 24V DC |
| Gear ratio | 49:1 / 74:1 / 101:1 / 218:1 / 505:1 / 634:1 |
| Motor diameter | 31mm |
| Unloaded current | 100~300 mA |
| Rated current | 1100~1400 mA |
| Unloaded speed(single motor) | 5000~8000 RPM |
Design drawing:
Product display:
About DC brushed motors:
DC brushed motors are most commonly used motors on the market.
It has electrical brush inside, and it has positive and negative
pins (+ and -)
DC motor’s speed can be controlled with different gear ratios, or
PWM control. (Pulse-Width Modulation)
With gearbox torque boost, DC motor can reach much higher torque,
compared to motor’s original torque.
Advantage of DC brush motors:
1. Cheap price
2. Small size
3. Easy to connect, easy to use
4. Commonly used
5. Fast speed
6. High efficiency (compared to stepper motor)
DC motor with gearbox:
Gearbox can boost motor’s torque, and reduce motor’s speed
We have different gear ratios for you to choose, also gearbox’s
efficiency is related to gear levels.
Output torque=original torque*gear ratio* gearbox efficiency
Output speed= original speed/gear ratio
