    Three Phase Pad Mounted Transformer 1000 KVA 34.5KV to 208Y/120 Oil Immersed Power Transformer with 65/60 ℃ Temperature Rise ANSI C57.12.34 Standard Dyn1 Vector Group

    Ask Lasest Price
    Brand Name : WINLEY
    Model Number : ZGS-1000/35
    Certification : UL/cUL,CE,ISO
    Price : $5000-$150000
    Payment Terms : T/T
    Supply Ability : 1000set/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Three Phase Pad Mounted Transformer 1000 KVA 34.5KV to 208Y/120 Oil Immersed Power Transformer with 65/60 ℃ Temperature Rise ANSI C57.12.34 Standard Dyn1 Vector Group

    Three Phase Pad Mounted Transformer 1000kva 34.5kv To 208v Oil Immersed Power Transformer
    Winley Electric delivers a wide selection of three‑phase pad‑mounted distribution transformers for commercial and industrial customers. We offer various ratings and accessory configurations so you can select the exact solution for your system.

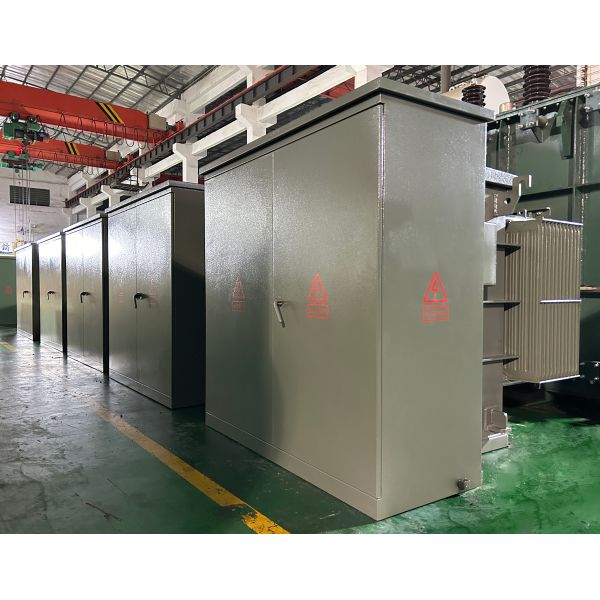

    1500kVA three-phase pad mounted transformer exterior view
    WINLEY Electric’s liquid‑filled pad‑mounted transformers are dielectric‑fluid distribution transformers rated up to 34.5 kV. Designed for underground power distribution, they serve applications such as data centers, hospitals, commercial buildings, private utilities, and industrial plants. Our products are UL listed and designed and tested to applicable ANSI, IEEE, CSA, and DOE standards.
    UL Certificate cUL Certificate
    Main Technical Specifications
    No.ParticularsUnitSpecification
    1Type~pad mounted, loop feed
    2Rated capacitykVA1000
    3No. of Phase~3
    4Primary voltageV34500
    4Primary bushing~(6) 35KV class 200A Copper 1-piece bushing + (1) H0 Porcelain bushing
    4BILkV150
    5Secondary voltageV208Y/120

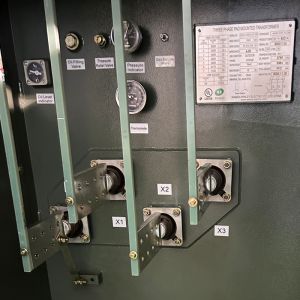

    5Secondary bushing~(4) 10-hole spade
    5BILkV30
    6Tapping type~off-circuit
    7Tapping rangeV36200, 35360, 34500, 33640, 33000, 32175, 31350
    8Cooling method~ONAN
    9Rated frequencyHz60
    10Vector group~Dyn1
    11Insulation class~A
    12Temperature rise65/60 (winding/top oil)
    Technical Drawings
    Technical drawing of 1500kVA transformer
    Key Product Features
    • Small size, reasonable and compact structure
    • Fully sealed oil tank, fully insulated design, safe and reliable operation
    • Strong overload capacity and superior resistance to sudden short circuits
    • Both ring network and terminal power supply can be used
    • Convenient operation and reliable power supply
    • Energy saving, low loss, no higher than the new S9 loss value
    • Good impact performance
    • Cable joint number can operate 200A load current, with long mechanical and electrical life
    Detailed Specifications
    Rated Power
    (KVA)
    High Voltage
    (KV)
    Low Voltage
    (V)
    No-load Loss
    (W)
    On-load Loss
    (W)
    Height
    (mm)
    Depth
    (mm)
    Width
    (mm)
    Weight
    (kg)
    Weight
    (Lbs)
    75KVA34.5KV
    4.160KV
    12.47KV
    13.2KV
    13.8KV
    24940GrdY/14400
    1247Grdy/7200
    4160GrdY/2400
    or others
    277V
    347V
    480V
    600V
    120/240V
    208GrdY/120
    415GrdY/240
    480GrdY/277
    600Y/347
    1801250143091019306451422
    150KVA2802200153098015109892180
    300KVA480365016801080166014153119
    500KVA680510017901160181019054200
    750KVA980750020301300203027556074
    1000KVA11501030018541549165132357132
    1500KVA164014500215015702210583512864
    2000KVA216020645222016002380643014175
    2500KVA268023786233016503070886519544
    3000KVA3300303002460185032601130024912
    3735KVA4125378752680206040801440031746


    Production Process

    Transformer production process - winding assembly Transformer production process - final testing
