Product Features:
1. Pixel spacing: 25mm horizontally and 31.25mm vertically, pixel
composition: 1R1G1B arranged in a zigzag pattern to increase color
mixing effect and avoid color cast display from different
perspectives;
2. Resolution ≥ 1280dot/㎡;
3. Module size: width 500mm x height 250mm, box size: width 1000mm
x height 500mm;
4. Driving mode: static constant current;
5. Brightness: ≥ 6000cd/㎡;
6. Module: composed of unit modules;
7. Protection: The protection level should not be lower than IP65
before and after (high protection performance, long service life);
8. The light transmittance can reach 60%, the fan free air
conditioner has natural heat dissipation performance, and low air
resistance;

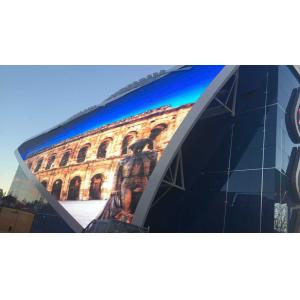

9. Free splicing of right angles and arcs, seamless splicing of 90
degrees on all four sides, and splicing of ± radians;

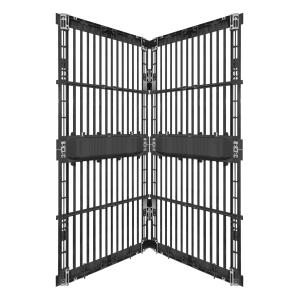

10. Box body: Die cast aluminum (one-piece molding) box body with a
left and right angle of 45 degrees. The box body is made of
high-strength die cast aluminum body, with light weight and high
strength as a single unit, supporting curved and right angle
installation;
11. Material of power control box: die cast aluminum (integrated
molding), power distribution board with 4-channel power supply;
12. Signal and Power Supply: Integrated Signal and Power Supply
Cable, Injection Molding Process;
13. Face mask: Anti glare face mask, with good ink consistency and
a sun hat;
14. Weight: ≤ 18kg/㎡
15. Maintenance method: Supports front and rear maintenance, easy
disassembly and maintenance;
16. System protection: It has moisture-proof, dust-proof, can adapt
to general harsh weather, anti-corrosion, anti-static, lightning
protection, earthquake resistance, and the system has smoke alarm
and over temperature alarm functions; Electrical protection:
equipped with overcurrent, short circuit, overvoltage, and
undervoltage protection functions;
