ASTMD495 Arc Resistance Testing Machine IEC 61621

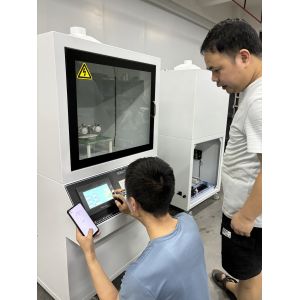

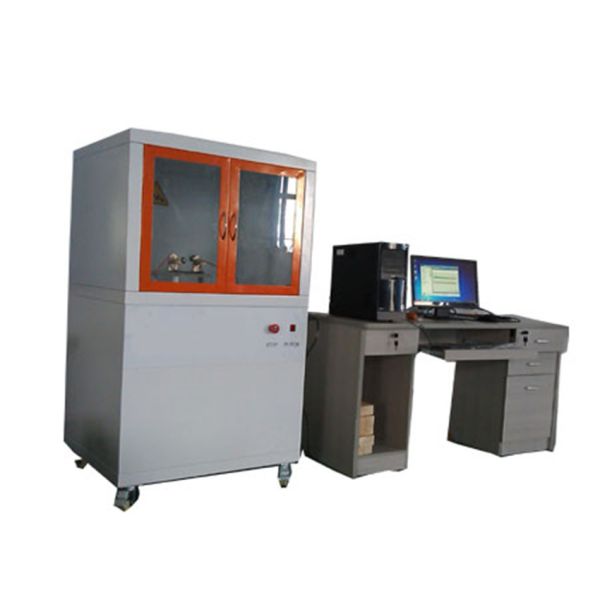

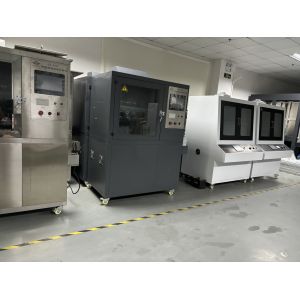

DX8413 Arc resistance testing machine

Standards:

As per IEC 61621, ASTMD495.

Scope of application:

The assessment of arc resistance performance of electrical insulation materials such as plastics, resin adhesives, and insulating paints used in industries such as motors, appliances, and household appliances is mainly applicable to the testing of arc resistance performance of solid insulation materials such as plastics, films, resins, mica, ceramics, glass, insulating oil, insulating paint, cardboard, and other media.

Features: The arc resistance testing machine adopts computer control, and the test curve can be observed online during the test process; Automatically store test conditions and test results data, and can access, display, and print them.

Experimental principle:

Used to test the arc resistance of solid insulation materials; The material to be tested will be exposed to a high voltage, gradually increasing small current environment until a stable conductive channel is formed on the surface of the material. This time is the arc resistance time of the material.

Main technical requirements:

1. Input voltage: AC 220 V

2. Output voltage: AC 0-20 KV;

3. Electrical capacity: 1.5 KVA

4. Test method: intermittent arc, continuous arc

5. Test current: 10MA-20MA-30MA-40MA optional

6. Test voltage control error: ≤ 1%

7. Arc on/off time error:<5ms

8. Test voltage continuously adjustable: 0-20 KV

9. Current control accuracy: ± 10%

10. Electrode specification: stainless steel plate electrode 25.4mm * 12.7mm * 0.15mm

Tungsten steel electrode 56mm * 7mm * 30mm

Electrode configuration angle 110 degrees

The angle between the electrode and the horizontal plane is 35 degrees

Electrode weight: 50G

11. Security measures:

(1) Overvoltage protection

(2) Overcurrent protection

(3) Short circuit protection

(4) Security door opening protection

(5) Software Misoperation Protection

12. External dimensions: 800 long × Width 700 × 1350mm high.
