Thermocouple Series
1. Use a silicon nitride hot surface igniter for ignition to ignite
the burner, completely eliminating the difficulty of cold start
ignition, which is safer and more reliable than traditional
pulse-style ignition; it replaces the traditional silicon carbide
igniter, thoroughly solving the problems of silicon carbide being
prone to breakage and degradation.
2. The burner flame is equipped with an ion-type flame detection
rod, providing flame-out protection and system safety protection.
3. The oven chamber temperature is measured and fed back using an
NTC-type temperature probe, which is more accurate than traditional
liquid expansion probes.
4. Equipped with dual safety electronic control valves, fully
complying with North American safety regulations. Additionally, it
features an electronic door lock that enables a self-cleaning
function.
5. Circuit board control system with human-machine interface input
options including:
a) Electronic temperature control knob (can replace traditional
liquid expansion thermostat)
b) Touch-sensitive membrane operation panel (customizable according
to customer requirements)
c) Touch glass operation panel (customizable according to customer
requirements)
d) Wireless operation via Bluetooth or Wi-Fi terminal.
6. The output end of the circuit board controller system can
connect to the following execution hardware:
a) Main safety electronic control valve
b) Upper and lower burner safety temperature control electronic
valves
c) Silicon nitride hot surface igniter
d) Electronic door lock
e) Convection fans, oven chamber lighting, etc.
7. The input end of the circuit board controller system can connect
to the following sensor hardware:
a) NTC high-temperature resistant temperature probe
b) Ion-type flame sensing rod

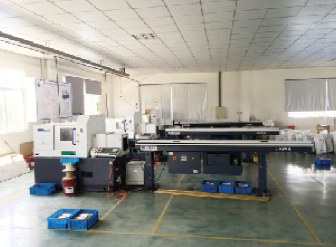

Qulity control:
