TAPPI T498 Tissue Softness Tester

    Buy cheap TAPPI T498 Tissue Softness Tester from wholesalers

    Buy cheap TAPPI T498 Tissue Softness Tester from wholesalers
    • Buy cheap TAPPI T498 Tissue Softness Tester from wholesalers
    • Buy cheap TAPPI T498 Tissue Softness Tester from wholesalers
    • Buy cheap TAPPI T498 Tissue Softness Tester from wholesalers

    TAPPI T498 Tissue Softness Tester

    Ask Lasest Price
    Brand Name : SKYLIE
    Model Number : SL-P22
    Certification : CE, Calibration Certificate, Rosh, CO...
    Payment Terms : L/C,D/P,D/A,T/T,Western Union,MoneyGram
    Supply Ability : 20-30 /month
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    TAPPI T498 Tissue Softness Tester

    TAPPI T498 Tissue Softness Tester
    TAPPI T498 Tissue Softness Test Machine

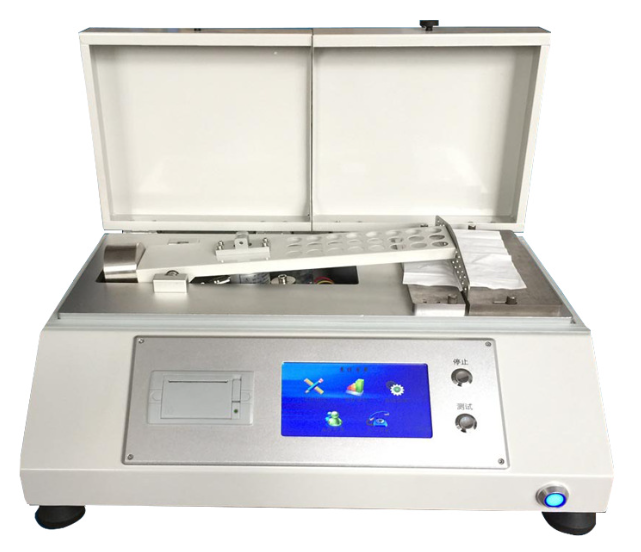

    Front view of Tissue Softness Tester showing control panel and testing area Side view of Tissue Softness Tester showing mechanical components
    Product Overview
    The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.
    Key Features
    • Microcomputer-controlled digital test system with touch screen interface
    • Bilingual (Chinese/English) operating system with intuitive controls
    • Advanced technology with reliable performance and easy operation
    • Ideal for paper manufacturing, scientific research, and quality inspection
    Test Principle
    The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.
    Compliance Standards
    GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3
    Technical Specifications
    ParameterSpecification
    Measuring range(10 ~ 1000) mN
    Test speed1.2mm/s
    Measurement time15s
    Resolution1mN
    Accuracy±1%
    Probe penetration depth8 +0.5mm
    Sample platform narrow width5mm, 6.35mm, 10mm, 20mm
    Parallelism error on both sides of the sample table slit≤0.05mm
    Display5-inch touch screen with curve display (50,000 hour lifespan)
    Power supplyAC 220V ± 22V, 50Hz
    Transport packagingWooden outer box with internal buffer material
    Product Demonstration
