SC/APC Side Shutter Adapter with Flange LSZH/PVC 2M
Fiber optic adapter is the component applicable for the connection
between fiber optic connectors, which can help couple the output
power from the transmitting fiber into the receiving fiber at the
maximum. Moreover,it’s also mainly used for the connection between
the cables or the cables and the equipment as well. SC adapters
from TAKFLY are featured with easy installation, low insertion
loss, good interchangeability and high & low temperature resistance
etc..
Adapter Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Broadband
- FTTH
Adapter Features
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
Available without flanges or with flange for duplex, saving panel
space
NTT standard compatible
SC2 8Port high density for patch panel mount applications
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Adapter Specifications
| Product | SC Adapter |
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB |
 Temperature～ Stability | Additional Loss≤0.2dB |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |

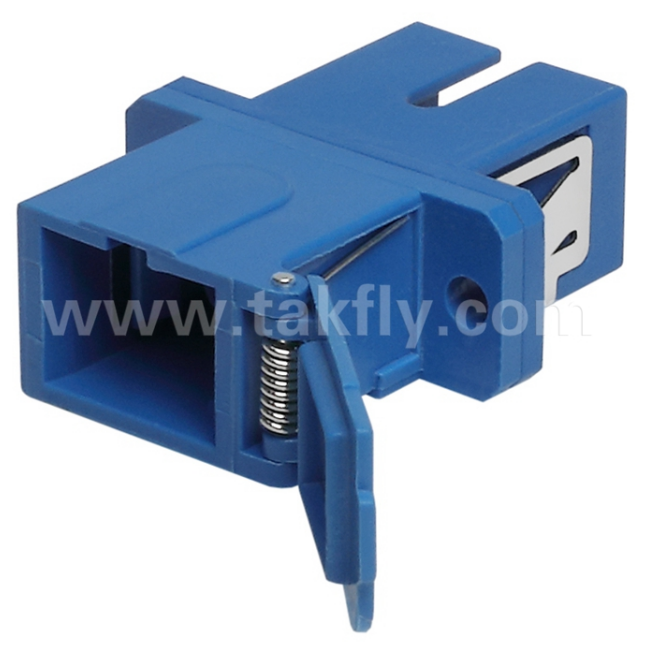

Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic
products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test
instrument; tension strength tester, Crush Resistance tester, Power
meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT,
CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according
to your request
