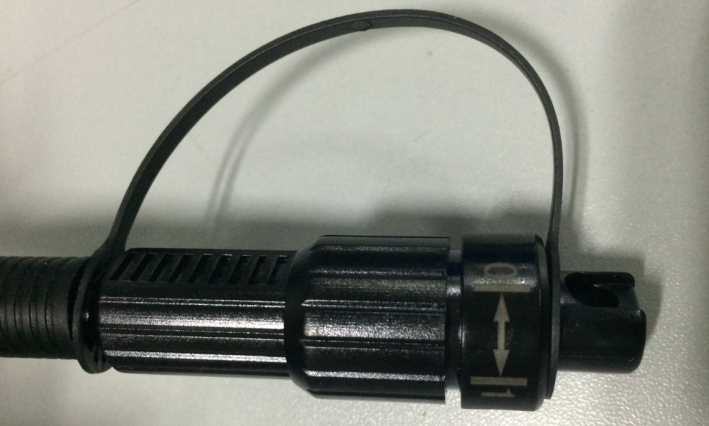

FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm,
Non Messenger Wire
A Fast Connect drop cable adopts an anti-vibration design. It allows plug
and play (no splicing), helps customers deploy it fast, and reduces
time. In addition, it ensures high network reliability and durability.
Product Attributes
- Mode field diameter:8.6um±0.4um at 1310nm
- Cladding diameter:125.0um±0.7um
- Coating diameter:245um±10um
- Coating-cladding concentricity error:≤12.5um
- Cut-off wavelength:≤1260nm
- Attenuation coefficient:1310≤0.4dB 1550≤0.3dB
FTTH Cable information
- Number of fiber:1 core
- Fiber type:G657A1
- Strength member material:FRP
- Diameter:0.4mm
Outer sheath:
Material:LSZH Black
Cable size:3.0*2.0mm
Connector Features&Benefits
- Fast deployment,plug and play
- IP67 protection
- Anti-vibration design
- Ferrule protection and orientation design
- Easy to install and uninstall
Product Test specifications
| Item | specifications |
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/ km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/ km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 80N |
Optical fiber performance
| Tensile strength | Long term(N) | 40 |
| Short term(N) | 80 |
| Crush load | Long term(N) | 500 |
| Short term(N) | 1000 |
| wavelength(nm) | 1310/1550 |
| Attenuation(dB) | 0.4/0.3 |
| Cladding diameter(um) | 125±1 |
| Cladding non-circularity | ≤1.0% |
| Coating diameter(um) | 242±7 |
Why choose TAKFLY?
Professional manufacturer:- With more than 25 years manufacturing experience in Fiber optic
products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test
instrument; tension strenth tester, Crush Resistance tester, Power
meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT,
CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according
to your request
FAQ
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contacts from website directly
for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of
mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of
shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to
make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you
can take pictures for our reference, our QC department will check
the problem and give best solutions to you, Further-more we will
also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and
can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the
photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
