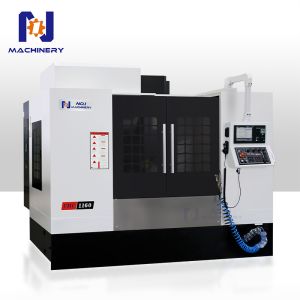

VMC1160 BT40 8000RPM Spindle Vertical Machining Center Customizable for Steel Casting
Product Application:
The CNC machine tool features an optimized structure and shape, resulting in a compact and rational design using high-rigidity castings. It can be used to process various sheet metal, shells, and complex parts, such as CAM and mold processing. It can perform drilling, milling, tapping, and other processes, making it suitable for mass production and meeting the drilling, tapping, and milling needs of small to medium-sized workpieces.
Main Feature:
1.High-precision castings, quenched to eliminate internal stress and ensure accuracy
2.CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3.The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4.The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6.Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7.Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1.SYNTEC 22MA control system.
2.Taiwan HIWIN screw.
3.BT40 Taiwan 8000 RPM spindle.
4.Taiwan OKADA 24-Disc-ATC.
5.Taiwan HIWIN 3 axis roller linear rails.
6.Electrical cabinet cold air exchanger.
Product Specification:
| Item Model | Unit | VMC1160 |
| Table size | mm | 1200*600 |
| Load-bearing capacity | kg | 800 |
| T-Slot | mm | 5-18×100 |
| Maximum Left/Right Travel (X-axis) | mm | 1100 |
| Maximum Front/Back Travel (Y-axis) | mm | 600 |
| Maximum Vertical Travel (Z-axis) | mm | 600 |
| Maximum Distance from Spindle End Face to Table Surface | mm | 720 |
| Minimum Distance from Spindle End Face to Table Surface | mm | 120 |
| Distance from Spindle Center to Z-Axis Guide Surface | mm | 650 |
| Tool Magazine Type | -- | Disc |
| Tool Magazine Capacity | Pcs | 24 |
| Tool Change Time | s | 2.2 |
| Maximum Tool Diameter | mm | Φ80/Φ150 |
| Maximum Tool Length | mm | 200 |
| Maximum Tool Weight | kg | 8 |
| Taper Hole (7:24) | -- | BT40-150 |
| RPM Range | r/min | 8000 |
| Spindle Rated power/peak | kw | 11 |
| Rapid Traverse (X-axis) | m/min | 24 |
| Rapid Traverse (Y-axis) | m/min | 24 |
| Rapid Traverse (Z-axis) | m/min | 20 |
| Feed Rate | mm/min | 1-10000 |
| Accuracy Testing Standards | -- | JISB6336-4:2000/ GB/T18400.4-2010 |
| X/Y/Z Axis accuracy | mm | ±0.008/300 |
| X/Y/Z Axis accuracy | mm | ±0.005/300 |
| Machine size(L*W*H) | mm | 3000×2420×2800 |
| Machine weight | kg | 6000 |
Product Display:
|
|
|
Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful
city,Zaozhuang,Shandong Province,China.We specialized in
manufacturing & exporting machinetools to the world for more than
30 years. We have got many international certifications such as
CE,ISO, WIPO, EAC,BV, TUV, SGS, and patents, Our machines have been
exported to morethan 100 countries and regions, and provide
long-term overseas technical guidance andafter-sales service for
these countries .We stick to the principle of "quality first,
service first,continuous improvement and innovation to meet the
customers" for the management.Strictly QC control with more than 24
steps testing processes.We wish to cooperatesincerely with friends
all over the world to realize mutual development.
