    Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1013C
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

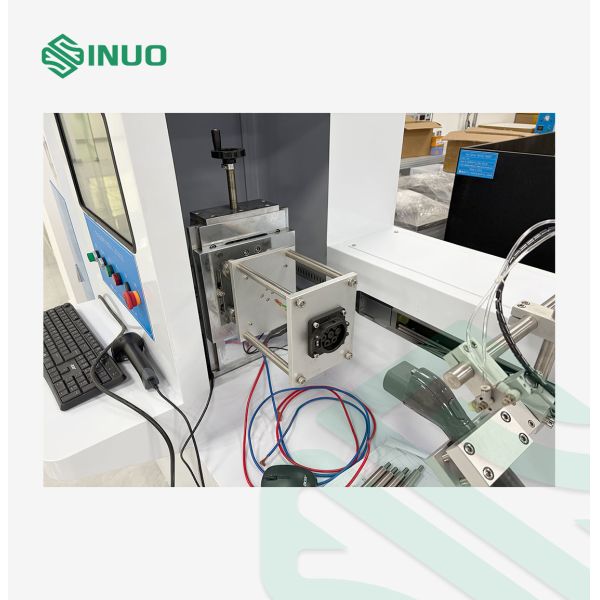

    Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment


    Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment


    Equipment Overview



    The Charging Gun Insertion & Withdrawal Force Tester is a high-precision tool specifically engineered for evaluating the plug-in and pull-out forces of EV charging connectors. Built for manufacturers who demand accuracy, stability, and efficiency, this system ensures every charging gun meets strict mechanical performance and safety requirements before entering the market.

    Powered by a high-precision ball screw and advanced stepper motor drive, the tester delivers exceptionally smooth and consistent linear motion. With a Class-0.5 accuracy load cell and a fast 1000 Hz sampling rate, it captures even the slightest force variations with outstanding reliability.

    Designed for real-world production environments, the system supports fully customized fixtures for different EV charging gun models. It also integrates barcode scanning for automated test initiation and result tracking—significantly improving testing efficiency and aiding in complete traceability.

    Whether used for incoming inspection, R&D verification, or end-of-line quality control, this tester offers the precision, stability, and automation needed for large-scale EV charging connector manufacturing.


    Technical Parameters



    Item

    Specification

    Test Capacity1 kN
    ComplianceJIS B 7721 Tensile/Compression Tester – Class 0.5
    Moving Length300 mm
    Moving Speed10.000 – 1000.000 mm/min
    Motion ControlHigh-precision ball screw + high-precision stepper motor
    Limit500 N
    Fixture Base460 × 245 mm
    StructureDesktop type
    Net WeightApprox. 60 kg
    Accuracy Level0.5 Class (measurement error ≤ 0.5%)
    Load Sampling Frequency1000 times/sec
    Load Cell Input Channels1 channel
    Display UnitsmN, N, kN (kgf, gf, lb(in) optional for overseas models)
    Protection FunctionsUpper/lower limit stops, overload protection, STOP button, emergency stop, software-defined limit protection
    Rated Power300 VA
    Power SupplySingle-phase AC100V–120V or AC200V–240V
    Details
