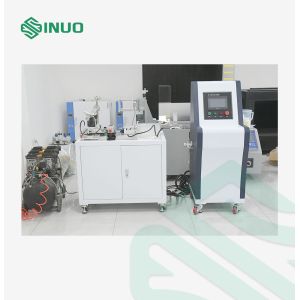

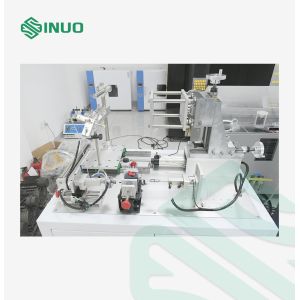

    EV Connector Electronic Lock Durability Testing Equipment IEC 62196-1

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1023A
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    EV Connector Electronic Lock Durability Testing Equipment IEC 62196-1


    EV Connector Electronic Lock Durability Testing Equipment IEC 62196-1


    Complied Standards & Clauses



    Conforms to IEC62196-1:2022, etc.


    Equipment Overview



    Ensure the safety and reliability of your EV charging connectors with our EV Charging Gun Lock Mechanism Tester. Designed for full-range performance and durability evaluation, it simulates real-world conditions—mechanical stress, electrical load, thermal influence, emergency unlocking, and extreme cycles.

    Featuring high-precision sensors, Mitsubishi PLC intelligent control, and universal fixtures for GB, EU, and US connectors, it delivers fast, accurate, and automated testing. Fully compliant with GB/T 20234.1-2023 and IEC 62196-1:2022, this tester is the perfect solution for R&D centers, certification labs, and EV equipment manufacturers seeking reliable performance data and enhanced product safety.


    Technical Parameters



    Electronic locking device applies force

    Equipped with a force-applying device for the locking lever mechanism of the electronic locking device, the force-applying device can clamp the end of the locking lever and apply axial thrust or tension. The force measurement range is required to meet (0~50) N, the indication error ≤ ±0.5% F.S., the resolution ≤ 0.1 N, and the force application rate can be adjusted to maintain a constant force value. The force-applying device can measure the displacement of the stressed part and the position of the locking lever, and the displacement measurement range is required to meet (0~50) mm.

    Security ProtectionGrounding protection, short circuit protection, overload protection
    Electrical control methodMitsubishi PLC intelligent integrated control, 7-inch color human-machine interface operation
    Operating modeManual or programmable operation
    DC power supply(30V/10A) DC, voltage accuracy better than 0.5 class, resolution ≤0.1V
    Test FunctionEquipped with top-bar electronic lock testing function
    Electronic locking device unlockingIt features manual unlocking of the electronic locking device and adopts an electronically controlled automatic operation mode. Programming is implemented to meet the normal operation (lifespan) requirements of the electronic locking device. The unlocking force requirement is (0~100) N, the indication error is ≤±0.5% F.S., and the resolution is ≤0.1 N.
    Clampsa) Meets the requirements for independent electronic locking devices or general-purpose fixtures; b) Meets the requirements for universal AC/DC charging interfaces according to national, American, and European standards.
    Polarity conversionThe PLC program automatically switches, and switches 1s after detecting the electronic lock status feedback.
    FunctionIt is equipped with a 1-200mA adjustable load current and a monitoring device that provides feedback on the electronic lock unlocking/locking signal, recording the signal on/off status and number of times.
    WorkstationSingle workstation
    Interval timeInterval time: can be set arbitrarily within the range of (0~200) s, resolution ≤1s, 1-200mA adjustable load current to cooperate with the operation;
    Fault diagnosisBuilt-in signal feedback detection, automatic shutdown in case of abnormality
    Number of trialsArbitrarily set within the range of (0~99999) times.
    Test Project

    a) Normal operation (lifespan) test of the electronic locking device

    b) Manual emergency unlocking test of the electronic locking device

    c) Extreme condition cycle life test of the electronic locking device

    Details

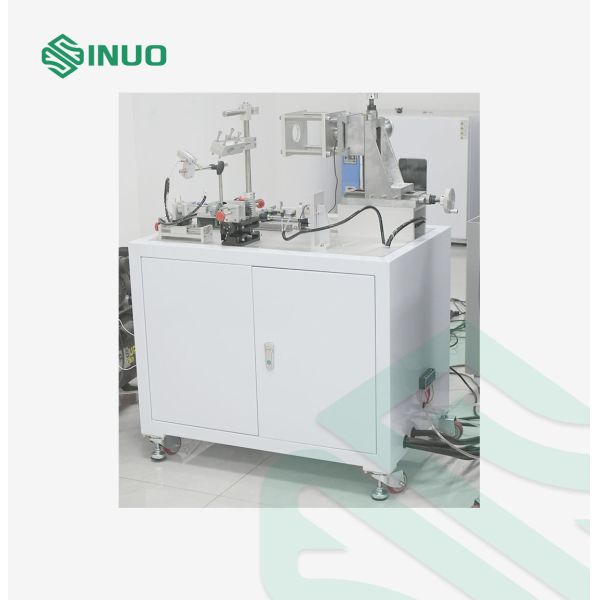

    Quality EV Connector Electronic Lock Durability Testing Equipment IEC 62196-1 for sale
