    EV Connector Cable Static Tensile & Compression Testing Equipment 5000N


    EV Connector Cable Static Tensile & Compression Testing Equipment 5000N


    Complied Standards & Clauses



    Conforms to IEC 62196-1:2022, etc.


    Product Overview

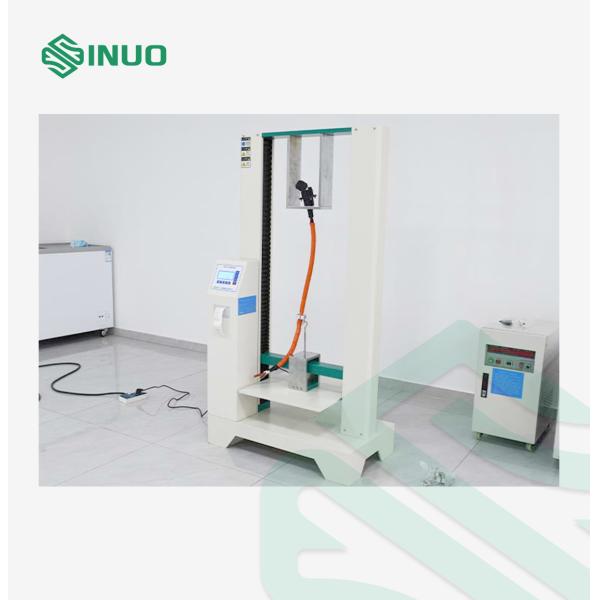

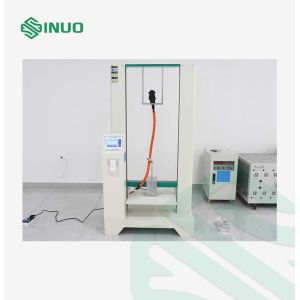

    Ensure the mechanical strength and reliability of your EV charging gun cables with our Static Tension and Compression Test Device. Designed for precision and durability, this advanced tester performs both tensile and compression tests to validate that cable clamping structures can withstand the mechanical forces encountered in real-world use.

    Equipped with a motor-driven dual-column frame and an intuitive touch screen interface, the tester allows accurate control of force, speed, and duration, while providing real-time force–time curve feedback for highly precise results.

    Ideal for R&D departments, EV connector manufacturers, and quality control laboratories, this device delivers customizable, repeatable, and reliable mechanical testing, helping engineers optimize cable designs, enhance safety, and ensure product longevity.


    Technical Parameters



    Parameter

    Specification

    ModelSNF02
    Inner Frame Dimensions (W×D×H)600 × 600 × 1000 mm
    Dimensions (W×D×H)Approx. 1200 × 600 × 1800 mm
    WeightApprox. 220 kg
    Drive ModeMotor-driven
    WorkstationSingle station
    Control MethodTouch screen operation
    Height Stroke0–600 mm
    Clamping MethodMechanical clamping
    Fixtures2 pcs tensile fixtures, 1 pc 500×500 mm compression plate
    Test FunctionsTensile test, Compression test for EV charging connectors
    Working Temperature0–40°C
    Force Holding Time1–999 s (countdown starts when set force is reached)
    Force Range0–5000 N (sensor monitored, presettable)
    Force UnitsN, kg, lb (switchable)
    AccuracyClass 0.25
    Resolution0.1 N
    Curve DisplayForce-time curve
    Test Speed1–300 mm/min (adjustable)
    Power SupplyAC220V ±10%, 50–60Hz
    Humidity Range30%–90% RH
    Sample TypeEV Charging Connector

    Details
