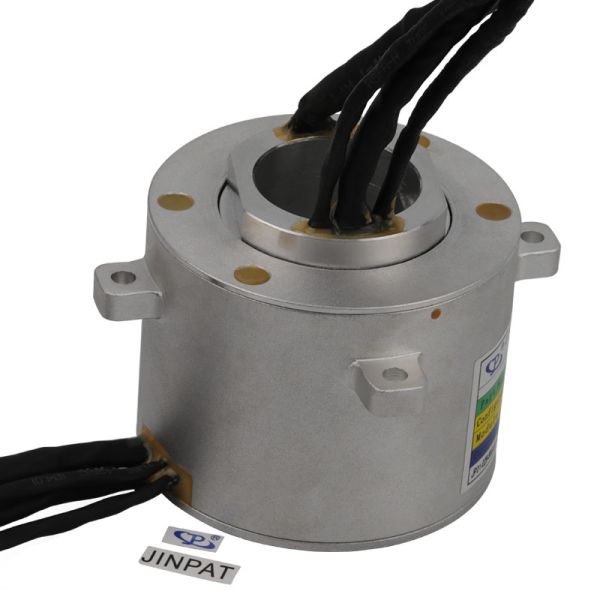

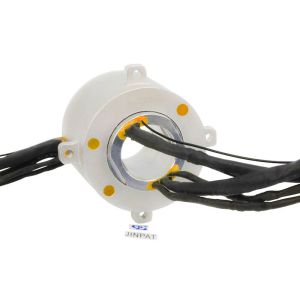

12 Circuits Through Hole Slip Ring 10A

12 Circuits Through Hole Slip Ring Transmitting 10A in 4 Circuits and Signal in 8 Circuits

Quick detail

Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection.

A rotary joint, also referred to as a rotary union or rotating union, permits the flow of various media from a stationary supply pipe and into and/or out of rotating equipment. Heat transfer and hydraulic media typically used with rotary joints and rotating unions include steam, water, thermal oil, hydraulic oil, air, and coolant.

Outline Drawing

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
