    Soil Standard Penetration Test Cone Penetrometer SPT Apparatus

    Ask Lasest Price
    Brand Name : ROSCHEN
    Model Number : 2 inch SPT hammer
    Certification : ISO
    Price : Negotiate
    Supply Ability : 100000000 set
    • Product Details
    • Company Profile

    Soil Standard Penetration Test Cone Penetrometer SPT Apparatus


    Soil Standard Penetration Test Cone Penetrometer SPT Apparatus


    Soil Standard Penetration Test cone penetrometer SPT Apparatus


    Product Description



    I. Use
    It used for rapid insitu measurement of the structural properties of existing road pavements constructed with unbound materials.


    II. Structure

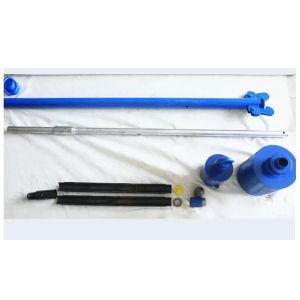

    SPT Split Tube Sampler design for carry out the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990 and ASTM standards. The Top Ball Valve Adaptor, pair of Split Spoons, and open SPT Shoe compose a complete of Split Tube Sampler. A Basket Retainer made from steel also is available as an option the sampler. The ball valve adaptor prevents samples from being washed out of the sampler when it is withdrawn from the borehole. A 60 degree nose cone or long solid rod with 60 degree point is available for carrying out SPT (c) tests in gravel and loose material. The screw connection on the top adaptor depends on the type of drill rods being used to drive the sampler. Most frequently used rods are 1-1/2" B.S. Whitworth, NWY Rod, BW or AW.


    III. Technical Specification


    NumberNameTechnical indicators
    1Hammer weight63.5kg
    2Fall height760mm
    3Extended Length260cm
    4Unextend length180mm
    5Net weight107kg
    6Split Tube Sampler outer size50.8mm x610mm
    7Inner size45.7mmx610mm

    Soil Standard Penetration Test cone penetrometer SPT Apparatus
