Data Sheet
| Brand | LAKER |
| Model | PTL20 |
| Power Type | Battery |
| Operation Type | Stand On |
| Rated Capacity【Q(kg)】 | 2000 |
| Load Center【C(mm)】 | 600 |
| Load Distance【x(mm)】 | 865 |
Wheel base【y(mm)】 | 1345 |
| Service weight(incl.battety)【kg】 | 630 |
| Axle capacity with full load,drive side/load side)【kg】 | 920/1756 |
| Axle capacity without full load,drive side/load side)【kg】 | 547/129 |
Wheel
| Tyre,operator/load side | PU |
| Load wheel【mm】 | Φ80×70 |
| Drive wheel【mm】 | Φ230×75 |
| Auxiliary wheel【mm】 | Φ125×50 |
| Number of wheels,load/drive(x=drive)+auxiliary | 4/1X+2 |
| Tread,drive【b10(mm)】 | 476 |
| Tread,drive【b11(mm)】 | 510 |

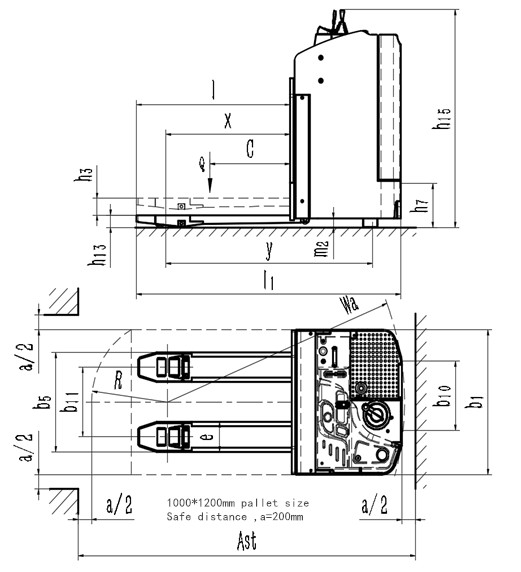

Dimension
Overall height【h1(mm)】 | 1430 |
| Lift height【h2(mm)】 | 200 |
| Fork face min.ground clearance【h3(mm)】 | 85 |
| Pedel height【h4(mm)】 | 155 |
Handle height【h5(mm)】 | 1080-1340 |
| Overall length,pedal off/on【l1(mm)】 | 1900-2310 |
| Overall width【b1(mm)】 | 730 |
| Fork outside size【b2(mm)】 | 680 |
| Fork size【l/s/e(mm)】 | 1150/170/56 |
| Body ground clearance【m2(mm)】 | 35 |
| Aisle width for pallet 1000*1200mm,pedal off/on【Ast(mm)】 | 2050/2500 |
| Aisle width for pallet 800*1200mm,pedal off/on【Ast(mm)】 | 2100/2550 |
| Turning radius,pedal off/on【Wa(mm)】 | 1730/2065 |
Function
Driving speed(load/unload)【km/h】 | 6/6 |
| Lifting speed(load/unload)【mm/s】 | 40/55 |
| Lowering speed(load/unload)【mm/s】 | 35/35 |
| Max.gradeability(load/unload)【%(tanθ)】 | 6/15 |
| Brake type | Electromagnetic |
PRODUCT ADVANTAGE
1. Maintenance-free high-power AC drive system, providing reliable
driving power; 210AH large-capacity battery,
strong endurance;
2. Station board type, pure electric steering, integrated operating
handle, safe, labor-saving and flexible
operation;
3. Fast, slow, and 3 speed driving, suitable for complex working
conditions;
4. Standard American CURTIS controller is reliable and durable; AMP
waterproof and dustproof plug-in provides
reliable protection of the circuit and greatly reduces electrical
failure;
5. Safety functions such as emergency power off switch, handle up and
down brakes, belly switch, turning speed
limit, undervoltage protection, lifting power limit and other
safety functions ensure driving safety;
6. The special design of the car body has high obstacle crossing
ability and good passability; the structure of five
fulcrums, the integrated shock absorption of auxiliary wheels on
both sides, the stability of the body is high, and
it is not easy to slip;
7. Torsion spring and disc spring damping pedal, driving comfortable
and safe;
8. Pull rod lifting, parallel four-bar linkage mechanism, convenient
adjustment and stable lifting; the mechanical
structure is made of strong materials, and the key parts are made
of high-strength steel plate, which is strong
and durable;
