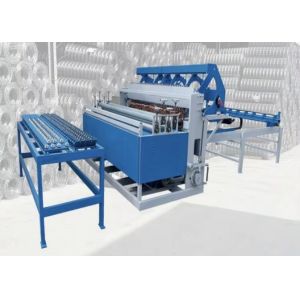

High Output PLC Wire Mesh Welding Machine Easy Operate BRCWZ2500B

High-Output Wire Mesh Welding Machine Easy-Operate BRC WZ-2500B

1.Introduction of Welding Wire Mesh Machine:

The welding machine is used to press the circuit wires and the cross wires together and perform welding to create a weld point.

(1) The service life of the upper contact compression spring under the rated load is more than 10,000,000 times.

(2) The main motor is equipped with a 4.0/5.5KW variable-frequency speed-regulating motor to ensure the welding pressure and speed.

(3) Utilize precision-cast wiring channels and modular installation with electrodes to ensure the accuracy of the grid.

(4) The wiring trough has an elastic reinforcement function, which effectively reduces the wear on the electrode blocks and extends the service life of the electrodes.

(5) There is a cross-wire detection device to ensure the accuracy of the cross-line breakage.

Product Description

Mesh Size 150mm Vertical Wire Coil Roof Construction Conforce Wire Machine

2.Features of Welding Wire Mesh Machine:

1. The mesh size is directly set on the touch screen, which is convenient and simple.

2. Vibration device is added to the cross wire feeding system to prevent wire winding.

3. The vertical wire automatic wire feeding and the cross wire are pre-straightening and cutting.

4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.

5. The mesh roll length can be set by the control panel.

6. We can easily adjust the welding current when we need to weld different wire diameters.

7. The finished product roll mesh is smooth and the error of opposite angle line is small.

8. We can set the output and stop the machine automatically after the mesh production finished.

Pull mesh system

The mesh pulling system adopts servo motor, which can improve the accuracy of mesh size and make the mechanical operation more
smooth.

Automatic roll mesh machine

The roll mesh system can automatically push the finished mesh roll out of the machine, save labor and increase output.

Connecting copper block

The connection between transformer and electrode uses copper block instead of soft copper leaf, which has better quality and
conductive effect.

Vertical wire straightening wheel

Each vertical wire will pass through the straightening wheel, which can make the mesh more flat and beautiful.

Technical Parameters of Welding Wire Mesh Machine:

Model	DX-2500B
Vertical wire type	Automatic Coil wire feeding
Cross wire type	Pre-cut
Number of welding electrode	51 pcs
Welding transformer	160KVA*7pcs
Control system	PLC
Vertical wire space	50-200mm
Cross wire space	50-200mm
Mesh cutting machine	Automatic cut mesh
Rolling mesh machine	Automatic rolling mesh
Main motor	5.5kw
Machine weight	5.8 tons
Machine dimension	153.31.7mm
Vertical wire straighten wheel	51 sets
Cross wire hopper	Controlled by stepping motor

Applications of Welding Wire Mesh Machine:

Building and civil engineering. Welding mesh is often used in the reinforcement of building structures, such as in the crack prevention project of wall insulation, internal plaster hanging mesh, and external wall insulation of high-rise buildings
The breeding industry. Electric welded mesh can be used as a fence to enclose livestock or crops.
Agriculture. Electric mesh can be used for garden fencing, drying crops (such as corn), and captive farming in the home.

Photos of Welding Wire Mesh Machine:
