Product Description:

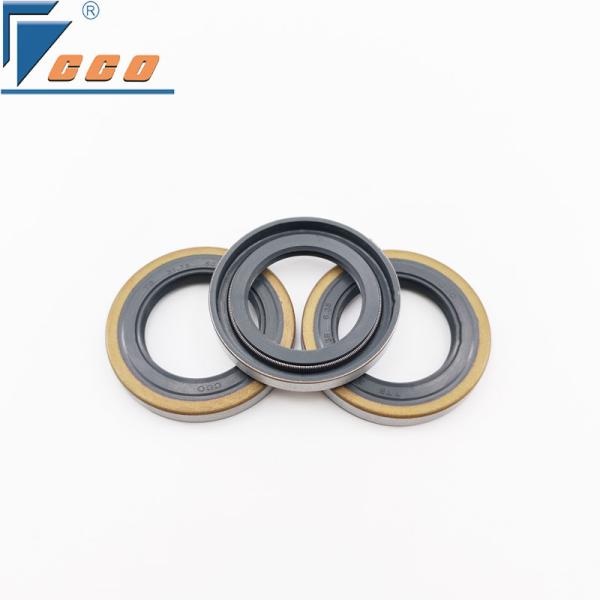

The design of the TB TYPE Oil Seal incorporates a spring-loaded
mechanism, which significantly enhances its sealing performance.
The spring loaded design ensures a tight and consistent seal by
applying uniform pressure around the shaft, accommodating minor
shaft misalignments and vibrations. This feature is particularly
crucial in applications such as Car Engine Oil Seals and Hydraulic
Oil Seals, where maintaining a secure seal under dynamic conditions
is vital to prevent oil leaks and contamination.
In terms of pressure handling, the TB TYPE Oil Seal is capable of
withstanding pressures ranging from 0 to 10 bar, making it suitable
for a variety of hydraulic and engine sealing applications. Its
pressure resistance is rated up to 0.03 MPa, ensuring that it can
endure the operational pressures commonly encountered in car
engines and hydraulic systems without failure. This level of
pressure resistance contributes to the oil seal’s reliability and
durability over prolonged periods of use.
The materials used in the TB TYPE Oil Seal are selected for their
excellent resistance to wear, heat, and chemical exposure. This
ensures that the seal remains effective in harsh environments where
exposure to engine oils, hydraulic fluids, and other chemicals is
routine. The robust construction of the TB TYPE Oil Seal guarantees
minimal maintenance requirements and reduces downtime for machinery
and vehicles, which is a critical advantage in commercial and
industrial settings.
Moreover, the TB TYPE Oil Seal is designed to be compatible with a
wide range of shaft sizes and configurations, providing versatility
for different applications. Its spring loaded, resilient sealing
lip adapts to shaft variations, ensuring a tight seal that prevents
the ingress of dirt, dust, and other contaminants. This protective
feature is essential in safeguarding engine components and
hydraulic systems, thereby enhancing overall system performance and
reliability.
Features:
- Product Name: TB TYPE Oil Seal
- Installation Method: Press-fit for secure and easy installation
- Design Type: Spring Loaded to ensure consistent sealing performance
- Pressure Resistance: Up to 0.03 MPa (0-10 Bar)
- Suitable for Car Engine Oil Seal applications
- Ideal for Air Cylinder Seals and Hydraulic Cylinder Oil Seals
| MATERIAL | FEATURES | Temperature |
Nitrile Rubbr (NBR) | Excellent wear resistance Excellent aging resistance Excellent Oil resistance Good water resistance Fair ozone resistance Fair acid resistance | -40~120°C |
Fluorinated Rubber (FKM) | Excellent wear resistance Excellent aging resistance Excellent Oil resistance Good water resistance Excellent ozone resistance Excellent acid resistance | -26~250°C |
| Silicone Rubber | Poor wear resistance Excellent aging resistance Poor Oil resistance Good water resistance Excellent ozone resistance Fair acid resistance | -60~225°C |
Polyacrylate Rubber (ACM) | Good wear resistance Excellent aging resistance Poor Oil resistance Good water resistance Excellent ozone resistance Fair acid resistance | -15~150°C |
Applications:
The CCO TB TYPE Oil Seal is a highly reliable sealing solution
designed to meet the rigorous demands of various industrial
applications. Manufactured in China, this product boasts superior
quality and durability, making it an ideal choice for sealing
rotating shafts in automotive and machinery sectors. The TB model
is engineered to operate effectively within a pressure range of
0-10 Bar and a temperature range of -40°C to 120°C, ensuring
optimal performance under diverse environmental conditions.
This oil seal is widely used in applications involving rotating
shafts, where maintaining fluid containment and preventing
contamination is critical. Its versatility allows it to be employed
in automotive engines, gearboxes, and other machinery components
that require dependable sealing to enhance efficiency and reduce
wear. The standard size and varying outer diameter options provide
flexibility, enabling easy integration into existing systems
without extensive modifications.
One of the prominent application scenarios for the TB TYPE Oil Seal
includes its use as Air Cylinder Seals. In pneumatic systems, Air
Cylinder Seals are essential for maintaining airtight conditions
and preventing leakage, which directly impacts the performance and
longevity of air cylinders. The CCO TB oil seal’s robust design and
material composition make it perfectly suited for this role,
ensuring the seals remain intact under continuous cycling and
varying pressure conditions.
Support and Services:
For technical support and service related to the TB TYPE Oil Seal,
please refer to the product manual and installation guidelines to
ensure proper usage and maintenance. Our technical team is
available to assist with troubleshooting, product selection, and
compatibility inquiries. Regular inspection and correct
installation are crucial to maximize the performance and lifespan
of the oil seal. We recommend using the TB TYPE Oil Seal within the
specified temperature and pressure ranges to avoid premature
failure. For replacement parts and further assistance, please
consult the authorized distributor or service center.
