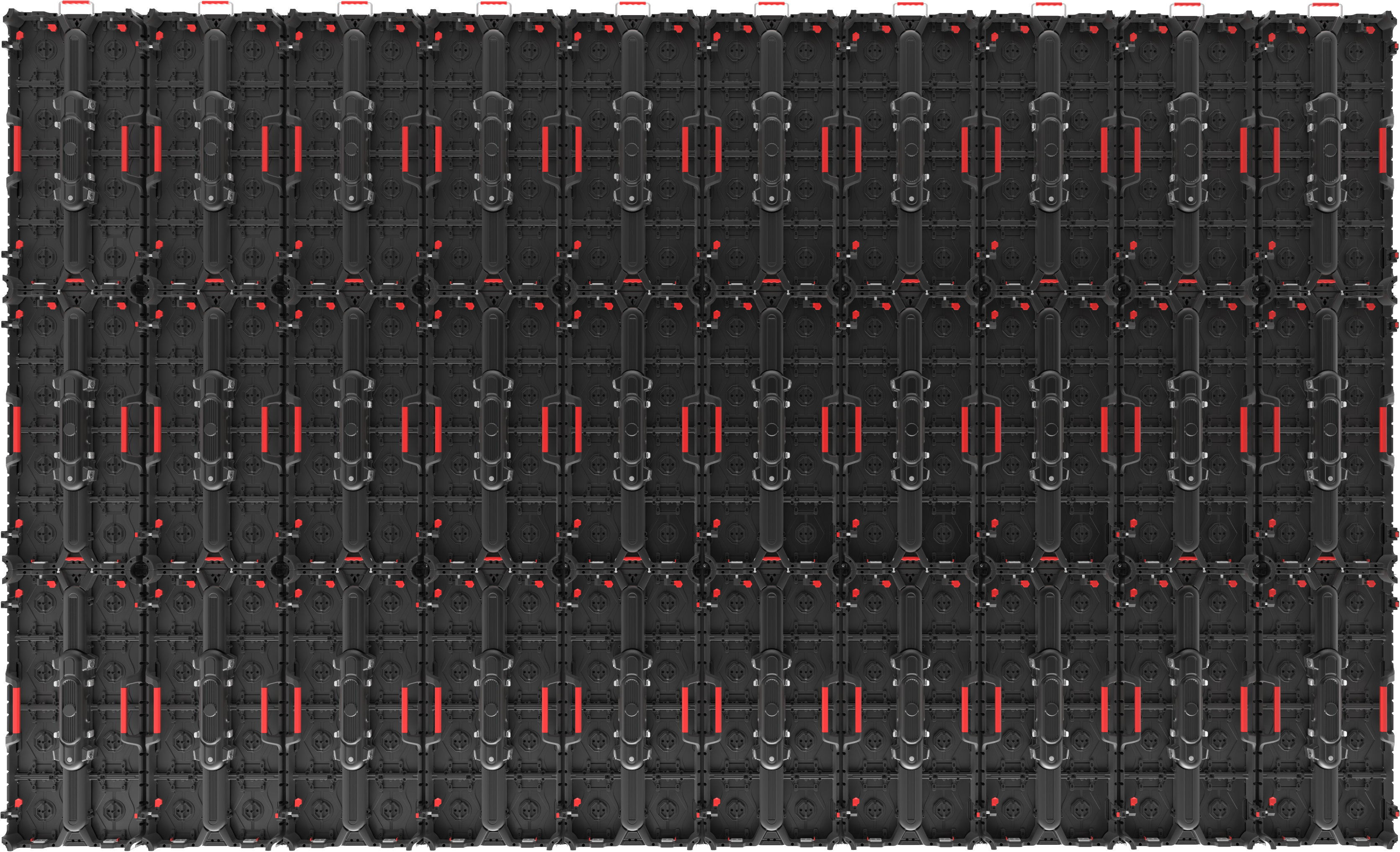

Swift-pro Series For Rental 500*500/500*1000 Mm Quick Installation And Disassembly

The key features of the SW-PRO Series rental LED displays:

1. Core General Features

• Ultra-thin and Lightweight: The cabinet weight is controlled between ≤7KG (for 500*500mm size) and ≤13KG (for 500*1000mm size), facilitating transportation and installation.
• Easy Installation and Maintenance: Standardized cabinets combined with high-quality processing technology enhance installation speed and display stability, ensuring safe and efficient maintenance.
• Rapid Heat Dissipation: Equipped with high-strength materials, it guarantees long-term stable operation of the equipment.
• Modular Design: Only modules need to be replaced during product upgrades, enabling "one cabinet for multiple uses".

2. Structural and Splicing Design

• Rich Cabinet Sizes: Available in two mainstream sizes, 500*500mm and 500*1000mm, to adapt to different application scenarios.

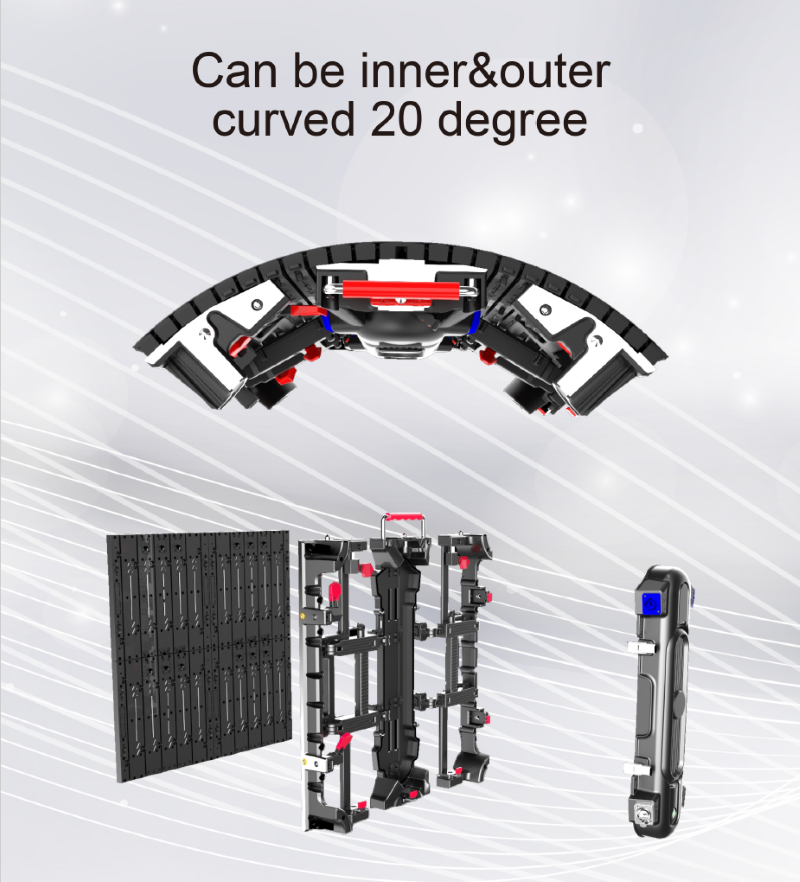

• Flexible Splicing: Supports flat splicing as well as inner and outer arc curved splicing. The SW-PRD Series can achieve a ±20° bend, while the SW-PRO Curve Series allows for 0-15° inner arc and 0-12.5° outer arc bends.
• Stable Connection: Adopts die-casting flexible hub connection (for SW-PRD) or die-casting hub connection with curved locks (for SW-PRO Curve), ensuring splicing accuracy and stability.
• Efficient Packaging: 8 units of the 500*500mm size can be packed in one flight case, and the 500*1000mm size supports packing 4 or 6 units in one flight case, facilitating bulk transportation.

3. Display Performance Advantages

• Clear Image Quality: Utilizes high-brightness, low-defect-rate LED beads, combined with the latest SMT technology, ensuring stable product quality.
• High Resolution: The maximum pixel density reaches 262,144 DOT/m² (for P1.9 model), presenting fine details without trailing or flickering.
• Ultra-high Refresh Rate: Adopts PWM high-refresh chips, with a refresh rate of ≥3840Hz, and some models can reach 7680Hz or above, meeting the requirements for playing high-speed dynamic images.
• Excellent Visual Experience: Features a 140° horizontal/vertical viewing angle, 14-bit grayscale, and 16.7 million colors, achieving true color reproduction.
• Strong Brightness Adaptability: Indoor models have a brightness of >800 CD/m², outdoor models have a brightness of >4500 CD/m², and multi-level brightness adjustment is supported (up to 4500 levels).

4. Protection and Durability

• High Protection Level: Outdoor models are designed with IP65 waterproof and dustproof capabilities, capable of withstanding wind, rain, and dust pollution, making them suitable for various outdoor environments.
• Long Service Life: Can reach 100,000 hours of normal use.
• Strong Environmental Adaptability: Operates within a temperature range of -20°C to +65°C and a humidity range of 10%-95% RH, compatible with multiple indoor and outdoor scenarios.

5. Applicable Scenarios

• Widely used in entertainment and event scenarios such as new product launches, concerts, cultural evenings, exhibitions, major sports events, bars, and nightclubs/KTVs.
• Suitable for public and private occasions including public welfare promotions, waiting rooms, platforms, wedding celebrations, and banquet halls.

Wuhan HLD Opto Technology LTD is a leading LED display solution provider. Wuhan HLD Opto Technology LTD is located in Wuhan Optics Valley, leveraging the educational and talent resources of Hubei Wuhan, the advantages of national-level photonics laboratories, and the industrial chain benefits from the Ezhou industrial park of San'an Optoelectronics, a leading LED industry enterprise.Over the past decade, we has successfully delivered nearly 3,000 projects of various application, such as smart cities, emergency command centers, video conference system, commercial advertising, exhibition halls, virtual shooting and so on. HLD integrates culture as its soul, technology as its backbone, and the industrial chain as its wings, to let global connoisseurs meet their visual resonance across the cosmos!
