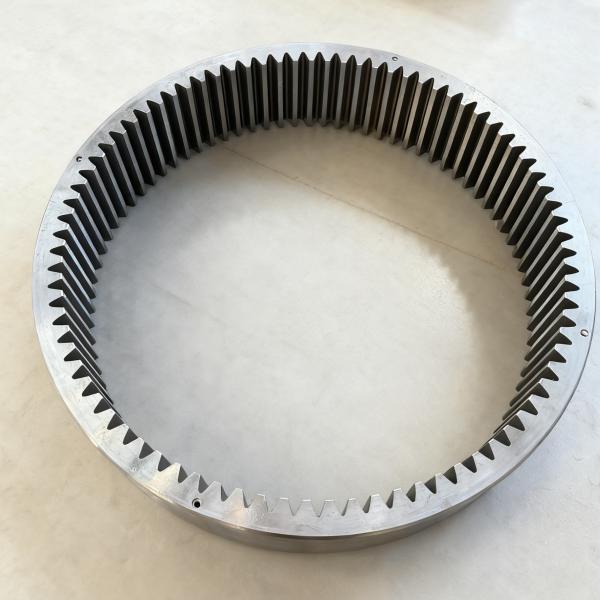

Custom Durable Internal Spur Gear Featuring Overload Capacity in Construction and Mining Equipment

1) Descriptions of Internal Spur Gear

From the perspective of heavy-duty stable meshing, internal gears are high-strength components specifically engineered for demanding load conditions. They transmit substantial torque through the meshing of their internal tooth surfaces with external gears, maintaining stable transmission performance under high-load environments.

2) Features of Internal Spur Gear

Characterised by high root strength (the root thickness of internal gears is 20%-30% greater than that of external gears of the same specification), a large tooth surface contact area, and the ability to withstand greater radial loads; Advantages include robust overload capacity, reduced susceptibility to root stress concentration fractures, stable transmission efficiency (maintaining over 95% efficiency under heavy loads), and mutual cancellation of radial forces during internal meshing, thereby lowering load requirements on supporting structures.

3) Applications of Internal Spur Gear

Suitable for heavy-duty equipment subjected to high loads, such as loader gearboxes in construction machinery (internal gears transmitting high torque), ball mill drive systems in mining machinery (internal gears adapted for heavy-load, low-speed operation), reduction mechanisms in large vessel propulsion systems, metallurgical equipment (e.g., auxiliary drive gears in rolling mills), and drive axle transmission components in heavy-duty trucks.

YIZHI MACHINERY which is equipped with a full range of machining capabilities to satisfy customer needs.

Our team has extensive experience in precision gearing systems for numerous industries. We have supplied gears for mining equipment, power tools, hydraulic pumps and the rail transit industry.

The feature products are double helical gear and precision spiral bevel gear, equipped with Hofler Rapid and helix grinding machines, Niles ZE and ZP grinding machines and Gleason Phoenix bevel gear grinding machines. This capability allows us to provide quality customs made gears to domestic and overseas markets.
