    120 r/h Advanced Wire Mesh Weaving Machine High Volume Production 1600D

    Ask Lasest Price
    Brand Name : APBWR
    Model Number : BWR130D-1RF
    Certification : ISO9001
    Price : $5000-50000
    Payment Terms : L/C,T/T
    Supply Ability : 1000+/year
    Delivery Time : 14-21DAYS
    • Product Details
    • Company Profile

    120 r/h Advanced Wire Mesh Weaving Machine High Volume Production 1600D

    Advanced Wire Mesh Weaving Loom High Volume Production 1600D



    1. Product Introduction
    The D-Type 1600 is a reinforced heavy-duty loom for continuous duty cycles. A high-stiffness frame and robust drivetrain maintain aperture consistency through extended operation and heavier wire ranges.

    2. Overview
    With closed-loop tension and servo coordination, the loom sustains flatness and edge quality while supporting larger diameters typical of industrial screens and protective panels.

    3. Key Features & Advantages

    • Heavy-Duty Build: Structural rigidity and low vibration for long runs.

    • Stable Geometry: Repeatable density and aperture, reduced rework.

    • Process Fit: Compatible with pre-straightening, inline inspection, auto take-up.

    • Serviceability: Standardized wear parts and clear access reduce downtime.

    • Safety: Interlocks and monitored stops as standard.

    4. Applications
    Industrial screening, protective mesh, construction/architectural panels, and medium-to-coarse mesh cloth.


    5.Products Parameter:


    Feature Category

    Light-duty Loom (Model B)

    Heavy-duty Loom (Model D)

    Mesh Width

    1300mm

    1600mm

    1300mm

    1600mm

    Harness System

    Positive (Overhead)

    Negative (Bottom Cam)

    Web Removal Method / Doffing Method

    Continuous Web Removal

    or

    Direct Winding

    Continuous Web Removal

    or

    Direct Winding

    Wire Diameter Range

    Continuous Web Removal

    0.01 - 0.2 mm

    0.1 - 0.6 mm

    Direct Winding

    0.03 - 0.2 mm

    0.1 - 0.3 mm

    Mesh Count Range

    Plain Weave

    30 - 500 mesh/inch

    10 - 100 mesh/inch

    Twill Weave

    30 - 635 mesh/inch

    20 - 100 mesh/inch

    Dutch Weave

    100 - 2300 mesh/inch

    30 - 500 mesh/inch

    Beating-Up Frequency

    Max. 120 r/h

    Max. 100 r/h

    Motor Power

    2.2kw

    2.2kw

    Standard Configuration

    Crankshaft Type

    Bushing Type

    Side Frames

    Casting Wall Plates

    Tension System

    Tension Sensor

    Rapier Head Type

    Carbon Fiber

    Drive Type

    Fully Digital Control (CNC)



    6. Detailed Images:

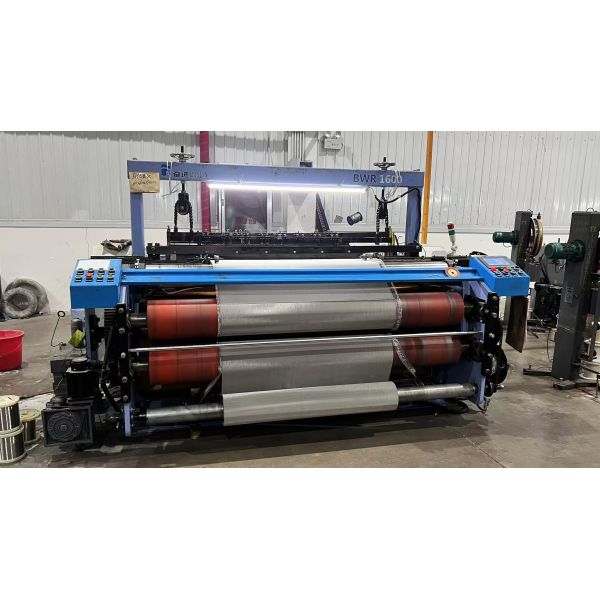

    Quality 120 r/h Advanced Wire Mesh Weaving Machine High Volume Production 1600D for sale
