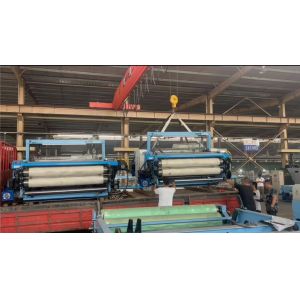

1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal

    Buy cheap 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal from wholesalers

    Buy cheap 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal from wholesalers
    • Buy cheap 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal from wholesalers
    • Buy cheap 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal from wholesalers
    • Buy cheap 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal from wholesalers
    • Buy cheap 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal from wholesalers

    1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal

    Ask Lasest Price
    Brand Name : APBWR
    Model Number : BWR130D-1RF
    Certification : ISO9001
    Price : $5000-50000
    Payment Terms : L/C,T/T
    Supply Ability : 1000+/Year
    Delivery Time : 14-21DAYS
    • Product Details
    • Company Profile

    1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal

    1600mm Full CNC Heavy Duty Wire Mesh Loom with Continuous Web Removal


    1.1600mm Full CNC Heavy Duty Wire Mesh Loom Description


    The heavy-duty, fully CNC wire mesh weaving machine is built on a reinforced chassis for long continuous runs with larger wire diameters. An industrial PLC + HMI governs servo-driven warp let-off, beat-up, and take-up, while closed-loop tension keeps aperture and density stable under load. Straight-roll / endless take-up options adapt to different downstream processes.


    2.1600mm Full CNC Heavy Duty Wire Mesh Loom Key Specifications


    Specification

    Value

    Working Width

    1600 mm (customizable)

    Mesh Capability

    Plain ~10–100 mesh/inch; Twill/Dutch (project-dependent)

    Wire Diameter

    ~Ø 0.10–0.60 mm (material-dependent)

    Control

    PLC + HMI, fully CNC coordinated

    Tension

    Closed-loop feedback

    Take-up

    Straight-roll / Endless take-up

    Speed

    Up to 120 rpm(mesh & wire dependent)


    3.1600mm Full CNC Technology & Principle

    • Servo-coordinated beat-up shapes packing uniformity across the width.

    • Closed-loop tension regulates density against drag and roll inertia.

    • Reinforced drive & balance minimize deflection and vibration at speed.

    4.Quick FAQ


    Q1. What wire materials can your weaving machines handle?
    Stainless steel (e.g., SS304/316), low-carbon and galvanized steel, aluminum, brass, copper, and some nickel-based alloys (process-dependent). Actual feasibility depends on wire diameter, tensile strength, surface finish, and spool quality. We validate specs via sample or trial run.


    Q2. I’m new to wire mesh—how do I choose the right machine?
    Start from your application and spec:

    • Mesh count & weave (Plain / Twill / Dutch)

    • Wire diameter range & material

    • Working width (customizable; typical 1.3–1.6 m)

    • Throughput target & roll/take-up preference (straight-roll / endless)
      As a rule of thumb: B-Type (Light-Duty) for fine wires & higher counts; D-Type (Heavy-Duty) for thicker wires & longer continuous runs. Share your target mesh and wire—our team will map to a base model + options.

    Q3. What mesh range do the machines support?
    Typical capability (project-dependent):

    • B-Type (Light-Duty): Plain ~30–500 mesh/in; supports Twill/Dutch with fine wires.

    • D-Type (Heavy-Duty): Plain ~10–100 mesh/in; supports Twill/Dutch with thicker wires.
      We confirm final ranges after evaluating wire/material and quality targets.

    Q4. Do you provide installation, training, and commissioning?
    Yes. We offer on-site or remote commissioning, operator training, and process onboarding. A pre-shipment FAT is available; SAT can be arranged at your plant.


    Q5. What if the machine has an issue overseas?
    We provide remote diagnostics (video call, log review), guided troubleshooting, and spare-parts support. If needed, we can arrange an engineer visit subject to scheduling and service terms.


    Q6. What about warranty and spare parts?
    Standard warranty terms are available upon request. We recommend a start-up spare kit (consumables & critical parts) to minimize downtime.



    6. Detailed Images:







    Quality 1600mm Full CNC Heavy Duty Wire Mesh Weaving Machine With Continuous Web Removal for sale
