    CNC Controlled Mesh Wire Making Machine Light Duty BWR1600B Wire Mesh Loom Machine

    Ask Lasest Price
    Brand Name : APBWR
    Model Number : BWR130B-1RF
    Certification : ISO9001
    Price : $5000-50000
    Payment Terms : L/C,T/T
    Supply Ability : 1000+ /year
    Delivery Time : 14-21DAYS
    • Product Details
    • Company Profile

    CNC Controlled Mesh Wire Making Machine Light Duty BWR1600B Wire Mesh Loom Machine

    Efficient CNC Controlled Light Duty Metal Wire Mesh Loom BWR1600B



    1. Light Duty Metal Wire Mesh Loom Introduction


    The BWR1600B is a light-duty, CNC-controlled wire mesh loom built on a rigid 1,600 mm chassis for stable, repeatable production. An industrial PLC with servo drives precisely coordinates warp let-off, beat-up, and take-up, while closed-loop tension control keeps aperture and density within tight tolerances. Mesh count and tension are digitally set and stored via the touch HMI, enabling fast, recipe-based changeovers and consistent quality across shifts. Typical capability (project-dependent): plain weave ~30–500 mesh/inch with fine wire handling down to ~Ø 0.01–0.20 mm; supports plain, twill, and Dutch weaves for broader process coverage.


    2. Light Duty Metal Wire Mesh Loom Application Scenarios


    Designed for precision and fine-wire work, the BWR1600B excels in filtration media, laboratory and pilot-line meshes, electronics and battery screens, catalyst support cloth, and architectural protection panels where flatness, clean selvedges, and dimensional consistency matter. Plants running multi-SKU programs benefit from quick spec switches and stable long runs, while OEMs and converters can integrate optional uncoiling, pre-straightening, cutting, edge-handling, and take-up modules to match downstream processes and target takt times.


    3. Light Duty Metal Wire Mesh Loom Key Advantages


    Engineered for uptime and ease of use, the BWR1600B combines servo synchronization with closed-loop tension to deliver stable geometry and smooth surfaces at speed. Recipe governance reduces operator variability and shortens setup time, lifting OEE and first-pass yield. A reinforced frame minimizes vibration, while service-friendly access and standardized wear parts simplify maintenance and lower total cost per square meter of mesh. ERP-ready order/BOM linkage (if enabled) provides progress visibility and material/batch traceability for audited production.


    4. Light Duty Metal Wire Mesh Loom Parameter:

    Feature Category

    Light-duty Loom (Model B)

    Heavy-duty Loom (Model D)

    Mesh Width

    1300mm

    1600mm

    1300mm

    1600mm

    Harness System

    Positive (Overhead)

    Negative (Bottom Cam)

    Web Removal Method / Doffing Method

    Continuous Web Removal

    or

    Direct Winding

    Continuous Web Removal

    or

    Direct Winding

    Wire Diameter Range

    Continuous Web Removal

    0.01 - 0.2 mm

    0.1 - 0.6 mm

    Direct Winding

    0.03 - 0.2 mm

    0.1 - 0.3 mm

    Mesh Count Range

    Plain Weave

    30 - 500 mesh/inch

    10 - 100 mesh/inch

    Twill Weave

    30 - 635 mesh/inch

    20 - 100 mesh/inch

    Dutch Weave

    100 - 2300 mesh/inch

    30 - 500 mesh/inch

    Beating-Up Frequency

    Max. 120 r/h

    Max. 100 r/h

    Motor Power

    2.2kw

    2.2kw

    Standard Configuration

    Crankshaft Type

    Bushing Type

    Side Frames

    Casting Wall Plates

    Tension System

    Tension Sensor

    Rapier Head Type

    Carbon Fiber

    Drive Type

    Fully Digital Control (CNC)

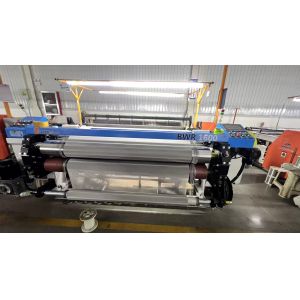

    6. Light Duty Metal Wire Mesh Loom Detailed Images:
