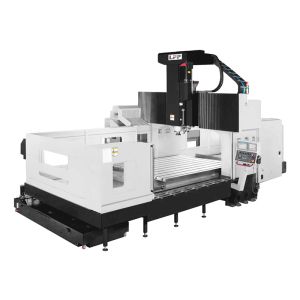

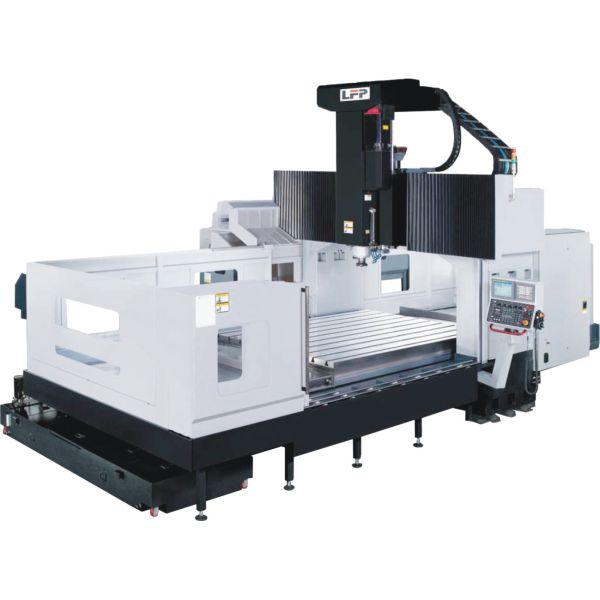

High load 5000kg LS full series bridge type gantry machining center
3 axis guide CNC milling machine
Lishang B series gantry machining center is a high-performance and
high-precision parts machining center. The entire Lishang B series
adopts a gantry frame structure with columns on both sides and a
crossbeam on the top. It integrates milling, drilling, tapping and
boring. The CNC machining center can bear 5000kg. It is widely used
in aerospace, automobile manufacturing, energy equipment, mold
processing and other fields. The fully automated CNC system can
save a lot of time and cost for enterprise processing and
manufacturing.
Product specification
| Name | Unit | LS-B20∞ | LS-B25∞ | LS-B30∞ |
Range | Worktable travel (X axis) | mm | 2200~0 |
| Saddle travel (Y axis) | mm | 2200 | 2700 | 3800 |
| Ram travel (Z axis) | mm | 1000 |
| Distance from spindle end to worktable | mm | 100~1100 |
| Effective door width | mm | 2800 | 3300 | 3800 |
Workbench | Workbench size | mm | 2000×(2000~) | 2500×(2000~0) | 3000×(2000~) |
| Workbench load-bearing | kg/m² | 5000 |
| T-slot width | mm | 28 |
Spindle | Spindle motor power | kw | Standard26/45;Optional22/37;15/26 |
| Speed map | r/min | Standard80~10000(BT50),Optional100~12000(HSK100A),100~18000(HSK63A) |
| Maximum output torque | Nm | Standard305/623,Optional159/326,Optional45.7/125 |
| Ram cross section | mm | 420*420 |
Speed | Cutting feed speed range | mm/min | 10000/10000/10000 |
| X,Y,Z Axis rapid traverse speed | mm/min | 30000/30000/24000 |
Other | CNC system | | FANUCOHMF() |
| Z-axis counterweight | | 2-Oil pressure + nitrogen balance |
Product Feature
- The machine has a compact structure, high rigidity, strong shock
absorption, and can reduce errors caused by vibration
- XYZ 30000/30000/24000 high speed of three axes,able to cut and
transform quickly
- The spindle constant temperature cooling system and the coordinate
axis grease automatic lubrication system ensure cooling during
operation, reduce machine wear and accelerate operation.
- Fully automatic parameter setting, small error, reducing labor
costs and maintenance costs
Processing parts
Processing workpiece
Application
Aerospace: aircraft wing beams, engine frames.
Energy equipment: turbine blades, nuclear power components.
Mold manufacturing: automotive cover molds, injection molds.
Rail transit: high-speed rail bogies, car body structural parts.
Sales service
* Instructions for use: Online operating instructions and usage
videos are available, and on-site training requires additional fees
* Online guidance: Professional engineers provide online technical
guidance to quickly solve customer problems
* Provide 3-year warranty and lifetime technical support services
What's your main products of your company?
We mainly produce and sell various types of CNC machining centers,
including vertical machining centers, gantry machining centers,
horizontal machining centers, five-axis machining centers, profile
machining centers, etc. We have our own factory to support
customization and welcome factory inspections.
What is the minimum order quantity?
Minimum order is one piece but a 30% deposit is required.
What payment methods are supported?
T/T , Alibaba, Paypal, USDT, Alipay, Wechat, etc
Which type shipment way ?
About shipment that we have own deliver way like sea method or
truck method .
