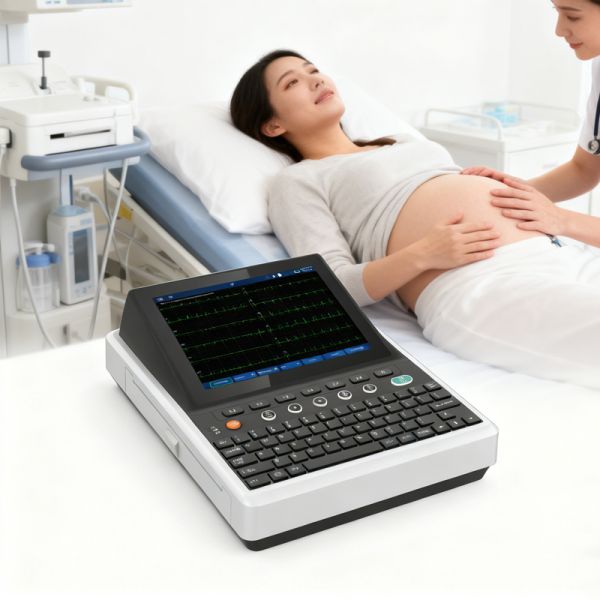

    12-Channel ECG Machine With 9.7" Touchscreen & Wireless DICOM Connectivity

    Ask Lasest Price
    Brand Name : Bestran
    Model Number : BT-ECG12E
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 300pcs per Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    12-Channel ECG Machine With 9.7" Touchscreen & Wireless DICOM Connectivity

    12-Channel ECG Machine With 9.7" Touchscreen & Wireless DICOM Connectivity


    12-Channel ECG Machine Advantages:

    This advanced 12-channel ECG machine combines clinical precision with digital innovation through its intuitive 9.7-inch HD touchscreen interface, providing crystal-clear waveform visualization and streamlined operation. The device enables seamless DICOM/HL7 integration via wired and wireless connectivity, allowing automatic transmission of ECG reports to hospital EMR/EHR systems for enhanced workflow efficiency.

    Supporting multi-format printing (including direct A4 laser and thermal printing) and 1000+ patient data storage with SD/USB expansion, it ensures comprehensive data management. With 8+ hours of continuous battery life and FTP direct sharing to PCs/smartphones, this ECG machine delivers exceptional versatility for modern healthcare environments requiring reliable, connected diagnostic solutions.


    12-Channel ECG Machine Feature:

    9.7 inch HD LCD display with touch screen
    QWERTY keyboard and short cut function key
    12 leads synchronous acquisition and display
    Printing Mode: Manual, Auto 3*4, 3*4+R, 3*4+3R, 6*2,6*2+1R,12*1
    More than 1000 data built-in storage, support SD card and USB extended
    Support wired and wireless connectivity via HL7, XML and DICOM
    Built-in rechargeable battery support more than 8 hours countinues work or 500 ECG recording
    Support A4 report printing by directly connecting with Laser printer
    Support thermal A4 report printing
    Send ECG report to PC or Smartphone via FTP directly


    12-Channel ECG Machine Specification:

    Technique Specification
    Frequency Response: 0.01 ~ 350Hz
    Time Constant: ≥ 3.2s
    CMRR: ≥ 115dB
    Patient Leakage Current: ≤10µA
    Calibration Voltage : 1mV ± 2%
    Input Circuit: ≤ 50μA
    Input Impedance: ≥ 50 MΩ(10 Hz)
    Noise Level: ≤ 15μVp∽p
    Sensitivity valve: 20 μV
    Polarization Voltage: ±950mV
    A/D shift: 24 bits
    Sampling rate : 32000Hz
    Sensitivity: 2.5, 5, 10, 20, 40, Auto
    Paper Speed: 5, 6.25,10,12.5, 25, 50mm/s
    Recording Mode:
    Thermal array printer
    8 dot/ mm (Vertical)
    40 dot/ mm (Horizontal, 25mm/s)
    Paper Type: Z-Fold Paper
    Paper Size: 210/216mm*140mm-20m
    Filter Setting:
    AC: off/50/60Hz;
    EMG: off/25/35/45/75/100/150/250/350Hz;
    DFT: off/0.01/0.05/0.3/0.6Hz
    Physical Specification
    Dimension & weight:
    Equipment:
    (L*W*H) 285mm *360 mm *94mm;
    about 3.7 kg
    Package: 446mm*238mm*483mm; 6.2kg
    Electrical Power:
    AC: 100V-240V, 50Hz/60Hz, 75VA
    DC: Built-in Lithium Battery
    Battery Capacity:
    14.8V / 4400mAh
    Continuous Operating:
    DC ≥ 7h
    Recharge time:
    the battery is charged to 90% in no more than
    3 hours, and charged to 100% in no more than
    3.5 hours
    Data Storage:
    Local:
    When sampling time is 10s, and layout is
    6×2, you can store no less than 1500 reports;
    When sampling time is 2.5s, and layout is
    6×2, you can store no less than 2000 reports;
    Support SD card and U Disk
    System Inputs & Output
    2*USB2.0/ LAN Connector/ SD Card Slot
    Standard Package
    ECG Machine (with battery)
    Patient Cable
    Chest Electrodes
    Limb Electrodes
    Power Cord
    Leads Wire
    Thermal Recording Paper
    Grounding Wire
    User Manual
    Guarantee Card
    Quick Operation Guide
    Optional Accessories
    Disposable Electrodes Thermal
    Recording Paper
    SD Memory Card
    Lithium Battery
    Workstation Software
    Trolley
    Laser Printer
    Scanner
    Card Reader

    12-Channel ECG Machine Usage:

    A 12-channel touch screen ECG is primarily used in clinical settings for comprehensive heart assessment. Its main applications include:

    1. Hospitals & Clinics: For detailed cardiac diagnosis in departments like Cardiology, Emergency Room (ER), and Intensive Care Units (ICU).

    2. Physical Examination Centers: As a key tool for routine heart health check-ups.

    3. Outpatient & Ambulatory Care: For efficient, high-quality ECG recordings during patient consultations.

    In short, it is used anywhere a detailed, 12-lead view of the heart's electrical activity is needed for accurate diagnosis and monitoring.
