400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation

    Buy cheap 400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation from wholesalers

    Buy cheap 400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation from wholesalers
    • Buy cheap 400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation from wholesalers

    400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation

    Ask Lasest Price
    Brand Name : Bestran
    Model Number : BT-ES07
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 500pcs per Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation

    400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation


    High-Frequency Electrosurgical Unit Features:

    This advanced 400W high-frequency electrosurgical unit delivers exceptional surgical precision through its multi-mode functionality, featuring pure cut, blend cut, and coagulation modes to accommodate various surgical requirements and tissue types.

    Engineered for optimal performance, the unit provides maximum output of 400W for cutting and 80W for coagulation, ensuring efficient tissue dissection and reliable hemostasis. Equipped with bipolar capability (up to 100W) and endoscope compatibility, it supports both open and minimally invasive procedures.

    The system includes dual control options (foot pedal and handswitch) and a comprehensive accessory set, offering versatility and convenience in operating rooms. With its intuitive design and safety features, this electrosurgical unit guarantees reliable performance for diverse surgical applications.


    High-Frequency Electrosurgical Unit Spefication:

    Pure cut

    1W~350W (Max. 400W, load 500 Ω);
    A high-frequency alternating current yields smooth, rapid cuts that evoke little to know hemostasis. (No-focus precision cutting, 100% cutting.)

    Blend cut 1

    1W~250W (load 500 Ω);
    Preset blended cut modes give the surgeon varying degrees of hemostasis in cut mode. (Superficial focal gamma accurate cutting 80% cutting, 20% coagulation.)

    Blend cut 2

    1W~200W (load 500 Ω);
    The mode is used for vaporization of prostatic tissue or any fat tissue. The higher output wattage gives fast cutting effect of the tissue. (60% cutting, 40% coagulation.)

    ENDU Cut

    99% (load 500 Ω);
    The mode is used to automatically controlled cut system to reduce the complication rate of endoscopic sphincterotomy (EST) and serum hyperamylasemia after EST compared to the conventional blended cut mode.

    Spray coagulation

    1W~80W (load 500 Ω);
    Spray output is made for direct coagulation at the tissue with spark. Above spark does not give any cutting effect as its CREST FACTOR is high. (Massive coagulation)

    Desicate coagulation

    1W~120W (load 500 Ω);
    Coagulation in which the active electrode is in direct contact with the tissue is referred to as desiccation and is the type of coagulation used in most surgeries it ensures pinpoint desiccation with less destruction of peripheral tissue.

    Standard bipolar coagulation

    1W~70W (load 100 Ω);
    BI-COAG - For highly precise control over coagulation process and privations of carbonization.

    Power consumption of the whole machine: ≤ 1100VA. (cut function 350W);



    High-Frequency Electrosurgical Unit Type:


    The output of this machine is fully suspended, with two independent and isolated CF type anti-defibrillation application parts (Monopolar and Bipolar), Non-AP,Non-APG type common equipment, and 220V ± 10% or 110V ± 10% network power supply.


    High-Frequency Electrosurgical Unit Function:


    The 416KHz (± 10%) high frequency current generated by this machine can perform surgical operations such as cutting and coagulation of biological tissues, and has monopolar cut: pure cut, blend cut 1, blend cut 2; Monopolar coagulation: spray coagulation, soft coagulation and standard bipolar six working modes.

    • Full-function automatic power compensation.
    • The high-frequency generator has a universal endoscope interface, which is used with gastroscope, enteroscope, bronchoscope, laparoscope and other endoscopes.
    • Support bipolar closure and separation to meet the requirements of surgical bipolar treatment without sticking the negative plate.
    • Patient circuit bipolar electrode plate contact quality detection system.
    • Monopolar output can be controlled either by hand or foot, and monopolar/bipolar automatic output.
    • This machine has a power-off protection circuit, which can memorize the output set value of each function in real time.
    • Remote fault diagnosis.
    • Human voice alarm function
    • Passed EMC test.

    High-Frequency Electrosurgical Unit Usage

    An electrosurgical unit (or high-frequency electrotome) is used in various medical settings for cutting tissue and controlling bleeding. Common places include:

    1. Hospital Operating Rooms: For a wide range of surgeries, from general to specialized procedures.

    2. Outpatient Surgery Centers: For minor operations and day surgeries.

    3. Dermatology and Plastic Surgery Clinics: For precise tissue removal and cosmetic procedures.

    4. Veterinary Clinics: For surgical procedures on animals.

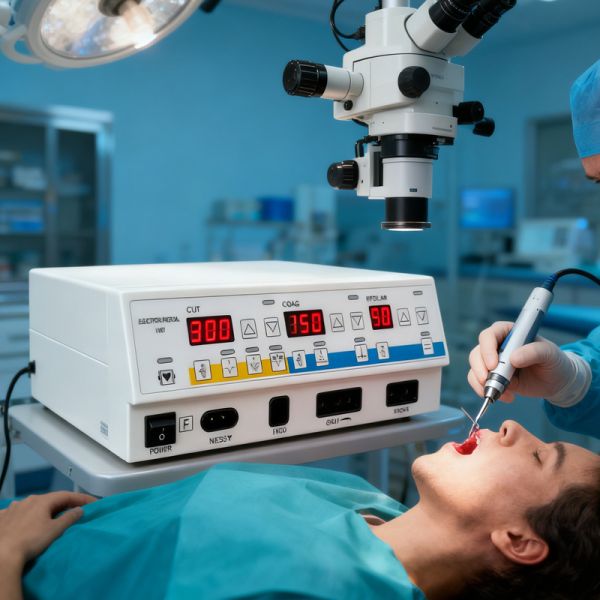

    Quality 400W High-Frequency Electrosurgical Unit with Multi-Mode Cutting & Coagulation for sale
