High-Performance Cat6 UTP Cable
305m network cable with 23 AWG bare copper conductors, designed for
indoor use and Fluke certified. This Cat6 UTP cable delivers
enhanced bandwidth for broadband, audio, and video applications,
making it ideal for office, home, and building installations.
Key Features
- Pure Bare Copper for faster transmission and longer distance than
CCA
- Tangle and twist-free packaging for easy installation
- Meter markings every 1m (3.28ft) for convenient measurement
- Supports PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
- CE, Reach, RoHS certified for environmental compliance
- CMR Rated (Riser) for between-floor, in-wall, and non-plenum spaces
- Color-coded cables for easy identification and troubleshooting
- Tested with Fluke DSX-8000 Versiv CableAnalyzer for guaranteed
performance
Cable Structure

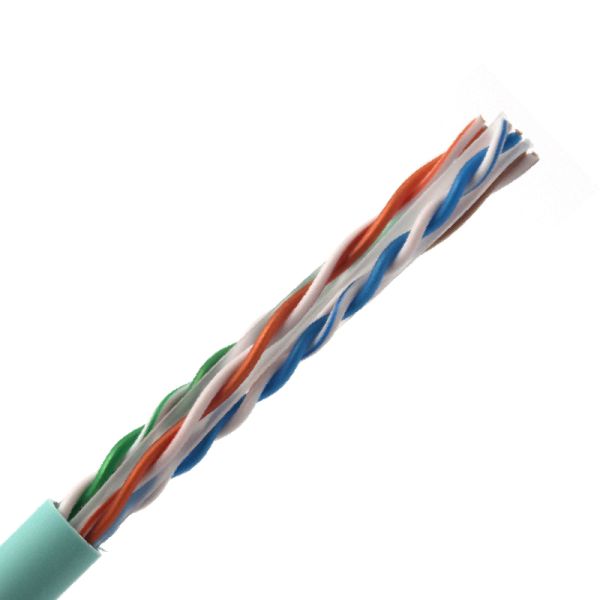

Bare copper conductors with PE insulation and green LSZH jacket.
Electrical Performance (20℃)
| Rated Temperature | 75°C |
| Impedance | 100±15Ω (1-100MHz) |
| Insulation Resistance | >5000MΩ·KM DC |
| Resistance | 10.8Ω/100m |
| Dielectric Strength | DC2500V 2S |
| Pair-to-Ground Capacitance Unbalance | 330pF/100M |
Technical Specifications
| Product Name | UNSHIELDED TWISTED PAIR 8 CORE CAT6 UTP CABLE LSZH JACKET |
| Inner Conductor | Material | 100% Copper |
| Diameter | 0.57mm ± 0.01mm (23AWG) |
| Insulation | Color-coded PE (Polyethylene) ≥ 0.21mm, 1.03mm ± 0.01mm |
| Cross Separator | Plastic |
| Shielded Layer | Transparent Foil |
| Twisted Pair | Pair 1: Blue, White/Blue
Pair 2: Orange, White/Orange
Pair 3: Green, White/Green
Pair 4: Brown, White/Brown |
| Outer Jacket | Material | New LSZH (Rip code, Optional) |
| Thickness | ≥ 0.65mm |
| Nominal O.D | 6.20mm ± 0.10mm |
| Reference Standard | Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC11801 Standard |
| Rated Temperature | -20℃ to +70℃ |
| Supports Transmission | Digital and analogue voice, data and video signal |
Product Images
Frequently Asked Questions
Q1: What are the advantages of your price?
A1: As a factory-direct manufacturer with professional equipment,
we offer competitive pricing that's typically 1%-10% lower than
comparable products while maintaining the same quality standards.
Q2: What is your quality advantage?
A2: We adhere strictly to ISO9001 quality management standards,
ensuring "Enough Cores, Enough Meters, High Quality, High
Performance" in all our products.
Q3: Do you support customized brands?
A3: Yes, we offer professional OEM services and provide free logo
customization for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers enjoy AIXTON's stock benefits and year-end
dividends. Long-term partners may qualify for global agent status
with additional pricing advantages.
