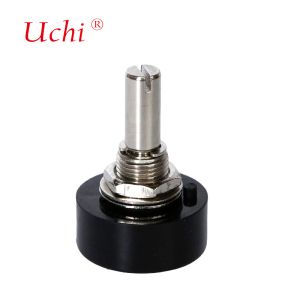

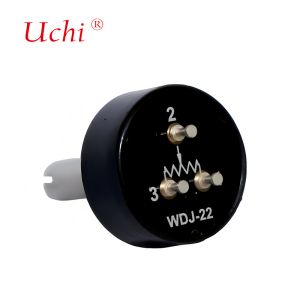

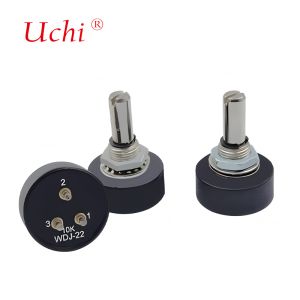

WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor

    Buy cheap WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor from wholesalers

    Buy cheap WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor from wholesalers
    • Buy cheap WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor from wholesalers
    • Buy cheap WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor from wholesalers
    • Buy cheap WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor from wholesalers
    • Buy cheap WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor from wholesalers

    WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor

    Ask Lasest Price
    Brand Name : Uchi
    Model Number : WDJ-22
    Certification : SMC
    Price : Negotiable
    Payment Terms : T/T,paypal, Western Union,MoneyGram
    Supply Ability : 50000000pcs per Month
    • Product Details
    • Company Profile

    WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor

    WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor

    Angle sensor, WDJ-22 displacement sensor, long-life potentiometer, conductive plastic potentiometer

    WDJ-22 long-life angle sensor conductive plastic potentiometer is used for angle measurement. Due to the structure of conductive plastic and precious metal brushes used internally, the product can output low noise smooth signals on the basis of smooth operation, making it suitable for precise displacement measurement in situations such as joystick control rods.

    Product Features

    1.Servo installation type, more convenient to use and install.
    2.360 ° continuous rotation, effective angle 340 ° (customizable).
    3.Temperature range: -40 ℃ -+125 ℃.
    4. infinitely small resolution
    5. Linearity: ± 1 % to ± 0.15 %
    6. Super long life: 5 million times
    7. Output smoothness: < 0.1 %
    8. rear terminal Customized according to customer requirements

    Specification Parameters
    Electrical:
    Resistance Range 1KΩ-10KΩ
    Resistance Tolerance ±10% Standard
    End Resistance <3Ω
    Resistance Taper B
    Independent Linearity ±0.5%
    Power Rating 0.5W(70℃)0W(120℃)
    Peak Noise (C.R.V.) <2%Rn
    Dielectric Strength 1000V 1minute
    Adjustment Travel 90°120°200° 240° 300° 340°
    Insulation Resistance 10M
    Resolution Essentially infinite
    Maximum Input Voltage 200VDC
    Environmental:
    Storage Temperature Range -60℃~+125℃
    Operating Temperature Range -60℃~+125℃
    Temperature coefficient 500ppm/℃
    Load Life 70℃ 1,000h ΔR/R≤±10%
    Rotational Life 1,000,000 times, ΔR/R≤±7%
    IP Range IP25
    Soldering Heat Resistance (350℃ 3S)ΔR/R≤±2%
    Temperature Cycle (-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10%
    Vibration 10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5%
    Mechanical:
    SIZE SEE DRAWING
    Mechanical Travel 220° 320° 360°
    Shaft Torque 25~35gf·cm
    Stop Strength ……
    Mounting Nut Torque 15Kgf·cm
    Shaft Runout 0.15mm
    Shaft End Play (shaft length 30 mm)0.15mm
    Shaft Radial Play 0.15mm
    Shaft Strength (push) 125 N (12.75 kgf ) min.
    Shaft Strength (tensile) 125 N (12.75 kgf ) min.
    Marking ……
    Hardware. Washer,Lockwasher, Nut

    Product Size


    Application Areas

    WDJ-22 series angle sensor, used for angle measurement. Due to the internal use of conductive plastic and precious metal brushes, the product can output low noise smooth signals on the basis of smooth operation. It is suitable for servo systems of automobiles, engineering machinery, space devices, missiles, aircraft radar antennas, as well as injection molding machines, woodworking machinery, printing machines, electronic rulers, robots, engineering monitoring, computer-controlled sports equipment and other situations that require precise displacement measurement.


    Manufacturer Information
    We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
    • Advanced production equipment
    • Professional R&D team
    • OEM/ODM capabilities
    • Strict quality control standards
    Manufacturing facility for electronic components production
    Shipping & Support
    We offer reliable global shipping solutions with comprehensive after-sales support:
    • Express Mail Service
    • DHL Express
    • UPS
    • FedEx
    Product packaging and shipping process overview
    Frequently Asked Questions
    Are you a factory or trading company?
    We are a factory offering direct pricing with professional technical support.
    Could you provide samples?
    Samples are available upon request after order placement.
    Can your product be customized?
    We accept OEM/ODM orders with flexible requirements.
    What is your delivery time?
    Delivery varies by quantity and model, with urgent requests accommodated when possible.
    Do you offer after-sales service?
    We provide comprehensive 24-hour support for all products.

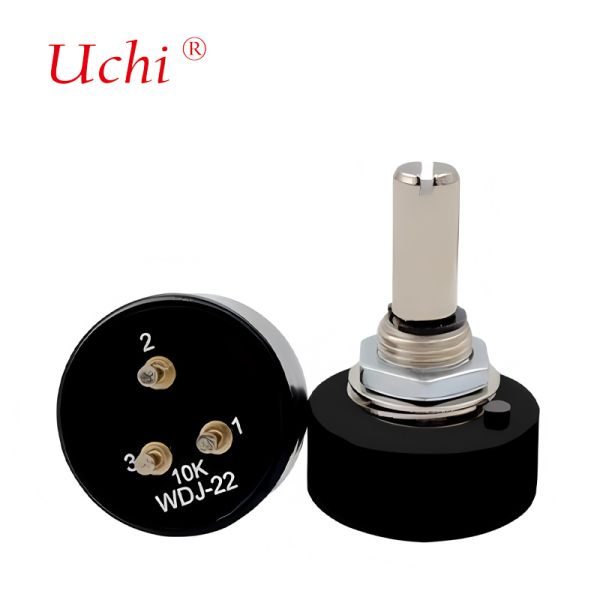

    Quality WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor for sale
