New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line

    Buy cheap New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line from wholesalers

    Buy cheap New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line from wholesalers
    • Buy cheap New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line from wholesalers
    • Buy cheap New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line from wholesalers
    • Buy cheap New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line from wholesalers
    • Buy cheap New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line from wholesalers

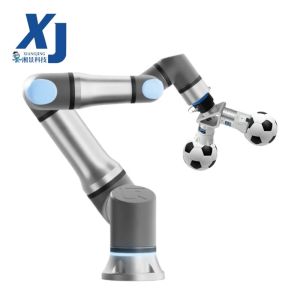

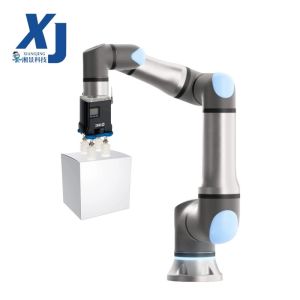

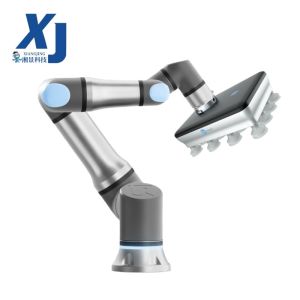

    New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line

    Ask Lasest Price
    Brand Name : UR
    Model Number : UR18
    Price : US $47500.00 - 57550.00/ Set
    Payment Terms : T/T
    Supply Ability : 500 sets per year
    Delivery Time : 60-80 days
    • Product Details
    • Company Profile

    New Model UR18 6 Axis Pick and Place Palletizing Robot Arm SMC Collaborative Robot Air Gripper for Automated Assembly Line

    Product Overview

    This UR+ certified kit combines the UR18e with SMC’s MHR3/MHS3 3-finger pneumatic grippers to provide true adaptive gripping for round, hexagonal, and irregular workpieces. The self-centering design and high gripping force (up to 650 N) make it ideal for heavy CNC machine tending of shafts, forgings, billets, and castings. Full URCap integration includes part-present sensing and automatic centering feedback — deployable in hours.

    Key Features
    • True 3-Finger Adaptive Grip: Self-centering on round & irregular parts
    • High Gripping Force: Up to 650 N (MHR3-40)
    • 180° Finger Opening Option: Load/unload from three directions
    • Part-Present Sensor: Integrated in URCap
    • UR+ Plug & Play: Auto I/O mapping and safety configuration
    • Double-Acting & Single-Acting Versions: Available
    Technical Specifications
    ParameterSpecification
    RobotUR18e
    Gripper SeriesSMC MHR3 / MHS3
    Bore SizesØ20 / Ø25 / Ø32 / Ø40 mm
    Gripping Force74 – 650 N
    Stroke4 – 20 mm per finger
    Max Workpiece Diameterup to Ø180 mm
    Opening Angle180° (optional)
    Applications
    • CNC lathe tending (shafts, pipes)
    • Forging and casting loading
    • Heavy part machine tending
    • Handling of round billets and bars
    Frequently Asked Questions
    Can it grip non-round parts?

    Yes — three fingers adapt to irregular shapes and always center the part.

    Is 180° opening available?

    Yes — MHR3 series allows side loading.
