Product Description:
Superabrasive is a term used to describe Diamond and CBN (Cubic
Boron Nitride). Diamond is the hardest substance on the Knoop
Hardness Scale and the only abrasive capable of grinding ultra-hard
materials. CBN is a new type of artificially synthesized material
developed in the 1950s, with a hardness second only to diamond .
They can both applied. Althougth CBN and Diamond are both
superabrasive, the areas of use vary consid-erably by material. In
general, diamond is used for grinding non-metallic hard and brittle
materials, while CBN is used to grind ferrous materials.

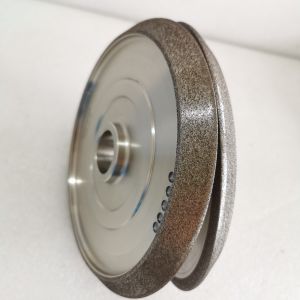

Electroplated CBN band saw grinding wheels are superhard grinding
wheels used to sharpen and dress band saw blades by electroplating
cubic boron nitride abrasive particles firmly adhered to the
surface of a metal substrate.
CBN: Cubic boron nitride, second only to diamond in hardness, is
specifically designed for machining ferrous metals (such as
high-speed steel).Electroplating: A manufacturing process that
"locks" the abrasive particles onto the substrate through metal
electrodeposition (usually nickel or a nickel alloy).Essentially,
it is a tool with extremely strong cutting capabilities, uniformly
distributed CBN abrasive grains on a metal substrate, far exceeding
the performance of traditional grinding wheels.
CBN grinding wheels can be mainly classified into metal-bonded,
ceramic-bonded, and resin-bonded types according to the type of
bond. With the development of superhard materials tool technology,
the objects that can be machined include almost all known
materials, which greatly improves the processing efficiency and
quality in various precision machining fields, especially as an
important part of advanced manufacturing technologies such as
high-speed, precision, CNC, and micro-machining.
Features:
- Exceptional sharpness and high efficiency
- Superior shape retention and precision
- Easy to operate, requiring no dressing
- Strong adhesion, able to withstand harsh grinding conditions
- Application: Bandsaw Blade Sharpening
- Wide range of applications
Technical Parameters:
| Material | Cubic Boron Nitride, Steel Basebody |
| Thickness | 22.23mm |
| Base Body | Steel |
| Profile | 10/30 , 9/29 |
| Grit Size | B151 B181 B213 |
| Country Of Origin | China |
| Packing | Standard Exported Carton Packing |
| Hs Code | 6804221000 |
| Application | Bandsaw Blade Sharpening |
| Balance | Dynamic balance |
| Durability | Long-lasting |
| Wheel Shape | Cylindrical |
Applications:
This grinding wheel is specifically designed for high-demand,
high-efficiency band saw sharpening, and is particularly suitable
for:
High-precision, high-volume band saw blade manufacturers.
Automated saw sharpening centers with extremely high requirements
for tooth quality and consistency.
Sharpening modern high-performance bimetallic band saw blades and
tungsten carbide coated band saw blades.
Precision sawing service providers requiring minimal burns and
extended blade life.
