    Stainless Steel IP68 Cable Glands, Spiral Strain Relief, Inox 304, 316 or 316L, Metric Pitch, M12~M50

    Ask Lasest Price
    Brand Name : Factory, OEM / ODM
    Model Number : SSCG Series
    Certification : CE, ROHS, REACH, IP68
    Price : factory direct sales
    Payment Terms : T/T, L/C, Western union
    Supply Ability : 500,000 pieces per month
    Delivery Time : normally 9-14 days
    • Product Details
    • Company Profile

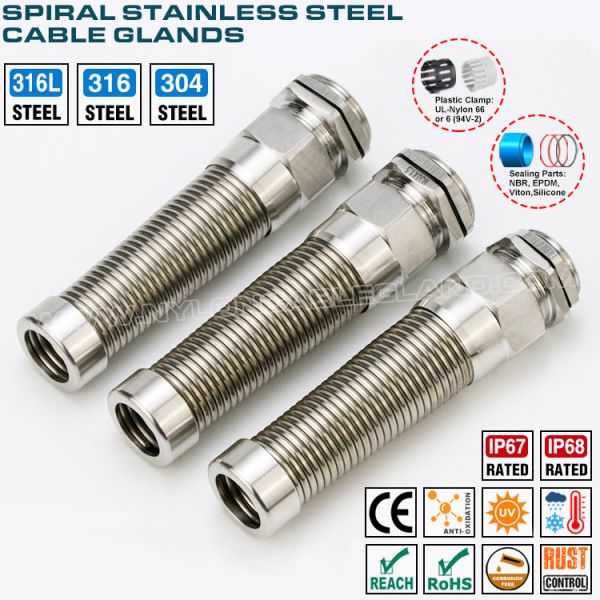

    Stainless Steel IP68 Cable Glands, Spiral Strain Relief, Inox 304, 316 or 316L, Metric Pitch, M12~M50

    Description & Application:

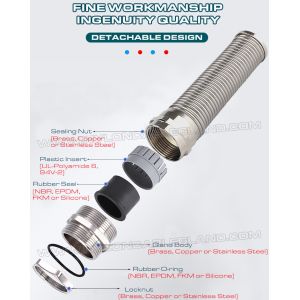

    The stainless steel cable glands with spiral strain relief (also known as spiral stainless steel cable glands) are protective components used at the connection between cables and equipment. Their main features include preventing excessive bending of the cable, providing a waterproof seal, and being made of stainless steel. They utilize a special spring or flexible structure to cushion and distribute stress on the cable at the outlet, while ensuring the sealing and stability of the cable connection. They consist of a stainless steel body, a spiral protector, a seal, a plastic insert, an o-ring and a locknut.
    They have the key features of strong tensile strength, high sealing performance, corrosion resistance, good security and stability, sustainable submersion and long service life, so they are often used for the following fields:

    ► Industrial Automation Equipment: In robots, automated production lines, CNC machine tools, and other equipment, cables need to move and bend frequently with the equipment. Anti-bend connectors effectively protect cable connection points.

    Outdoor and Humid Environments: Suitable for streetlights, lighthouses, yachts, and equipment exposed to rain or soil. Stainless steel offers excellent waterproof, dustproof, and corrosion-resistant (salt-resistant, acid and alkali-resistant) properties.

    Handheld Power Tools and Welding Equipment: Using anti-bend connectors at power cord leads in welding machines and other applications requiring frequent plugging, unplugging, and dragging can significantly extend cable life and prevent fatigue breakage.

    Medical Devices and Marine Industry: High-grade materials such as 316 stainless steel have strong waterproof and rust-proof capabilities and are commonly used for connections in medical devices and equipment used in marine environments.

    New Energy Industry: Cable connectors with high protective and bending resistance are also required in some servo motor control cabinets and new energy equipment.

    Our Advantages:
    • Competitive prices from direct factory.
    All our products are friendly to earth (green products).
    High quality ensures long service life for indoor and outdoor applications.
    Our cable glands are up to IP68 / IP69K level.
    Timely delivery and good services are our principle.
    Free samples are available on request.
    Special cable glands can be customized according to customer's original samples or drawings.
    OEM / ODM services are available.
    Information:
    Brand name:Factory or OEM
    Place of origin:China
    Specs:M12x1.5 ~ M50x1.5
    Material:Metallic parts are made from stainless steel 304, 316, 316L
    Plastic insert is made from UL-polyamide 6, 94V-2
    Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM
    Surface:Polishing threatment
    Color:Silver gray
    Certification:CE, ROHS, REACH, IP68
    Waterproofness:IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
    Thread length:Standard length (other lengths can be customized)
    Thread type:According to the standard EN 60423
    Working temperature:

    Static: -40 ℃ to +100 ℃, short-term: +120 ℃.

    Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃

    OEM service:Yes, available
    Supply capability:500,000 pieces per month
    Minimum quantity:200 pieces
    Sample available:Free samples are available upon request
    Delivery time:Normally 8-10 days after confirmation of orders
    Payment terms:T/T in advance, Western Union, L/C at sight
    Shipment terms:EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
    Export packaging:

    (1) 100 pieces per bag or 50 pieces per bag

    (2) special packaging can be customized as requested
