Product Description:

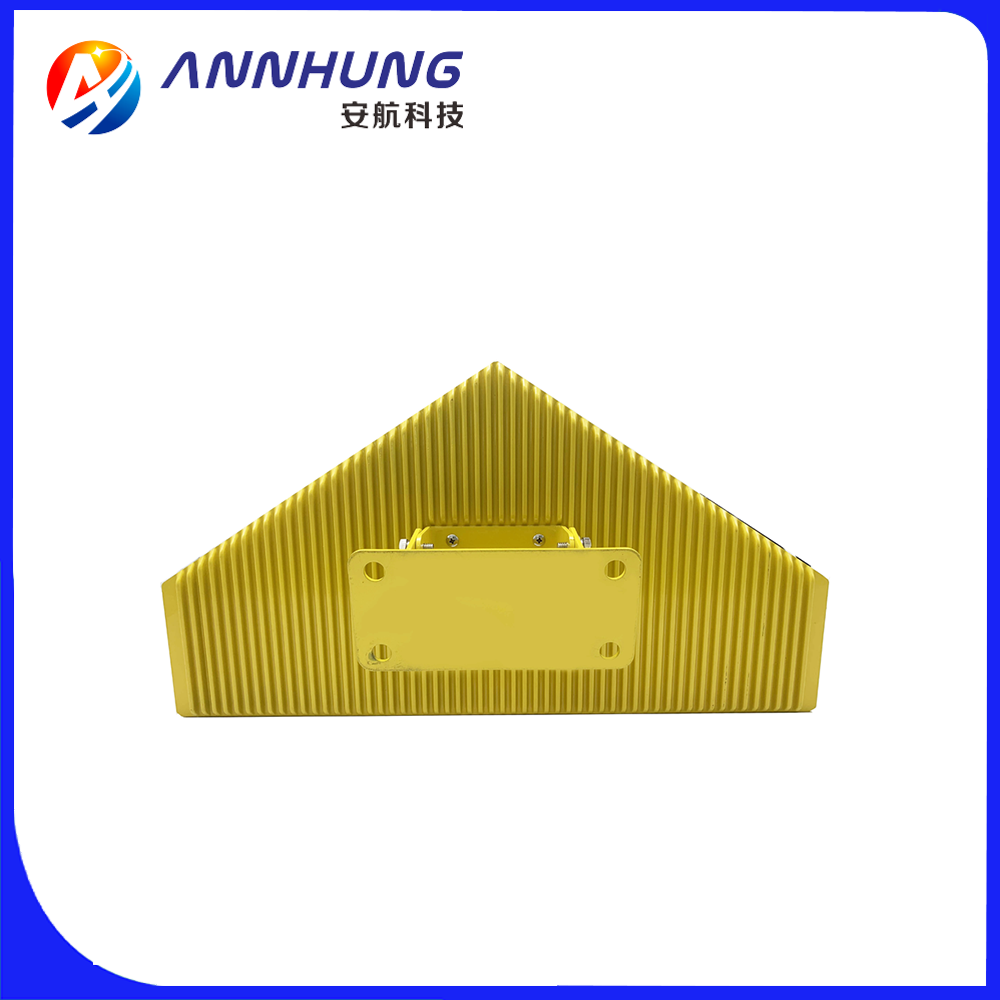

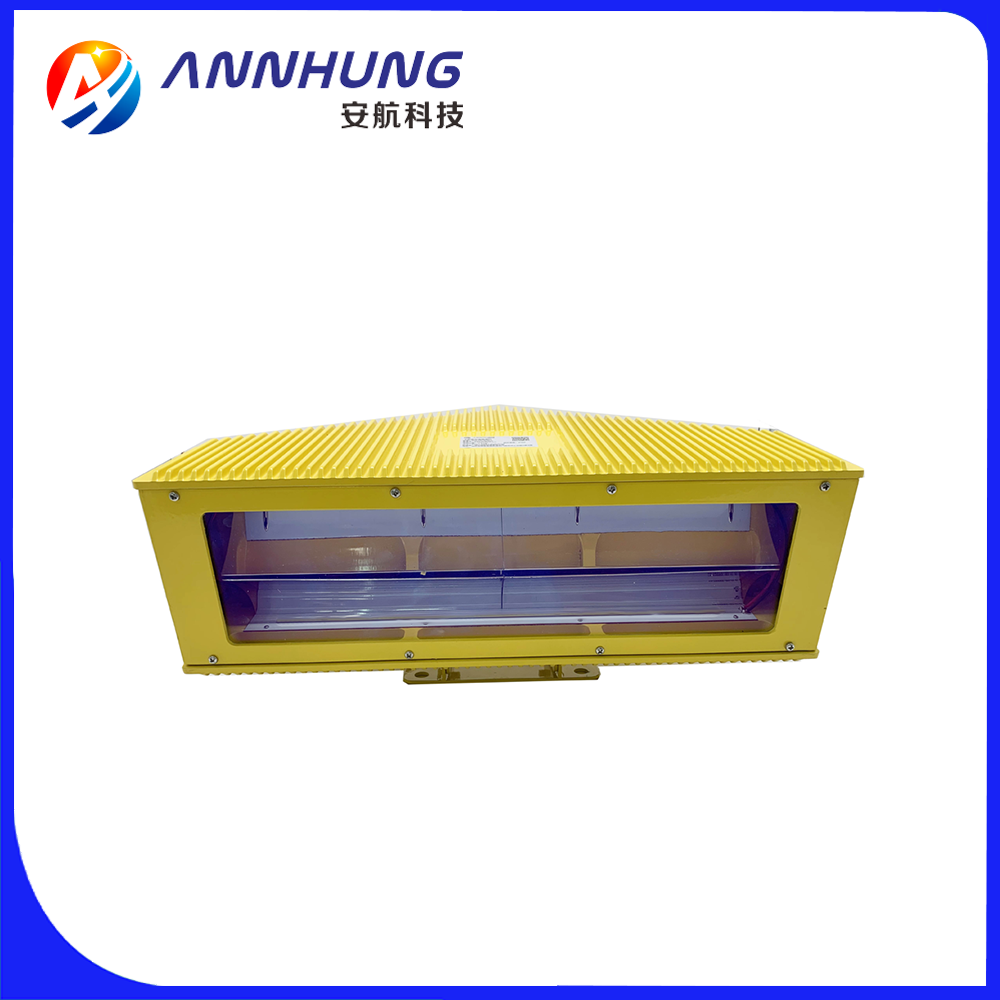

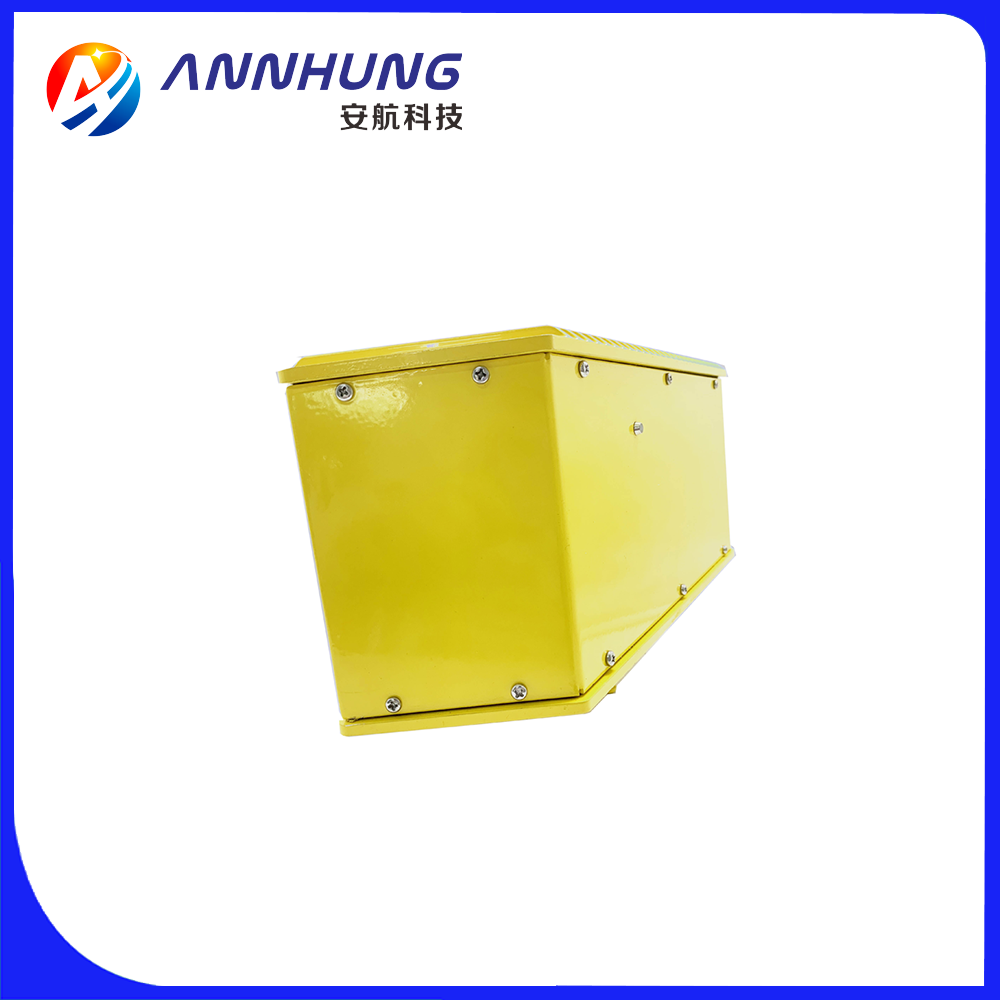

The LED Aviation Obstruction Light is a highly reliable and
efficient Air Traffic Safety Light designed to enhance the
visibility of structures that pose potential hazards to aircraft.
Utilizing advanced CREE High Intensity LED technology, this
Obstacle Marking Light ensures exceptional brightness and
long-lasting performance, making it an essential component in
maintaining safe airspace around towers, buildings, and other
elevated structures.
The light source employed in this aviation obstruction light is the
renowned CREE High Intensity LED, known for its superior luminosity
and energy efficiency. This ensures that the light remains highly
visible even in adverse weather conditions such as fog, rain, or
snow, thereby significantly reducing the risk of collisions and
enhancing overall air traffic safety.
Durability and longevity are critical factors in aviation safety
lighting, and this product excels in both areas. The LED life
expectancy exceeds 100,000 hours, meaning that the light can
operate continuously for many years with minimal maintenance. This
long operational life reduces downtime and maintenance costs,
making it a cost-effective solution for long-term use.
This LED Aviation Obstruction Light serves as a critical Air
Traffic Safety Light by providing clear and reliable indication of
obstacles in the airspace. Its robust design, combined with
cutting-edge LED technology and flexible operating features, makes
it an indispensable tool for airports, communication towers, wind
turbines, and other high structures requiring effective obstacle
marking.
Features:
- Product Name: LED Aviation Obstruction Light
- Model: AH-HI-A1(L) LED High-intensity Type A Aviation Obstruction
Light
- Available Color: White
- Vertical Divergence: 3-7 degrees
- Horizontal Output: 90 degrees
- Intensity (cd): ≥200,000cd (Daytime)
- Intensity (cd): ≥20,000cd (Twilight)
- Intensity (cd): ≥2,000cd (Night)
- Feature: Flashing Aircraft Warning Light
Technical Parameters:
| Name | AH-HI-A1(L) LED High-intensity Type A Aviation Obstruction Light |
| Light Source | CREE High Intensity LED |
| Intensity (cd) | ≥200,000cd (Daytime) ≥20,000cd (Twilight) ≥2,000cd (Night) |
| Operation Mode | 24 hours Operation, 3 Different Modes |
| Operating Voltage | DC (48VDC) Or AC (110, 240V) Or Others |
| Vertical Divergence (degrees) | 3-7 |
| Horizontal Output (degrees) | 90 |
| LED Life Experience (hours) | >100,000 |
| Flash Characteristics | 40-60 FPM (40fpm As Factory Setting) |
| Available Colors | White |
| Description | Flashing Aircraft Warning Light, Obstacle Marking Light, Tower
Warning Beacon |
Applications:
AH-HI-A1(L) High-intensity light is used on the top of the
High-rise Building, High Chimney, marking towers (Telecom, GSM,
Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc. when
the obstacle height is more than 150meter, and most time work with
low intensity lights & medium intensity light installed on the
lower place.
Support and Services:
Our LED Aviation Obstruction Light is designed to provide reliable
and high-visibility signaling for towers, buildings, and other
structures to ensure aviation safety. For technical support, our
team is ready to assist with installation guidance,
troubleshooting, and maintenance tips to maximize the performance
and lifespan of your lighting system.
Packing and Shipping:
Product Packaging: The LED Aviation Obstruction Light is securely packaged in a
durable, impact-resistant box to ensure safe transit. Inside the
box, the light is cushioned with high-quality foam inserts to
prevent any movement or damage during shipping. The packaging is
designed to be compact yet protective, minimizing environmental
impact while ensuring product integrity.
FAQ:
Q1: What is the brand and model number of this LED Aviation
Obstruction Light?
A1: The LED Aviation Obstruction Light is branded AUGNNH, and the
model number is AH-HI-A1(L).
Q2: Where is this product manufactured?
A2: This product is made in China.
Q3: Does the LED Aviation Obstruction Light have any
certifications?
A3: Yes, it is certified by ICAO and CE, ensuring it meets
international safety and quality standards.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 1 unit.
Q5: What are the packaging details and delivery time for an order?
A5: The product is packaged in cartons, and the delivery time
ranges from 3 to 15 days depending on the order size and shipping
method.
Q6: What payment methods are accepted for purchasing this LED
Aviation Obstruction Light?
A6: Payment can be made via TT (Telegraphic Transfer) or Western
Union.
Q7: What is the supply ability for this product?
A7: The supplier can provide up to 2000 pieces per month.
